The global electric vehicle market is experiencing unprecedented growth, with charging infrastructure installations increasing by over 40% annually across key markets. This rapid expansion has created significant demand for robust, reliable EV charger distribution boards that can handle the unique electrical requirements of modern charging stations. As procurement teams and electrical contractors face mounting pressure to deploy charging networks quickly while ensuring long-term reliability, the choice of distribution board materials has become a critical strategic decision.
EV charging infrastructure differs substantially from traditional electrical installations due to higher sustained loads, frequent switching cycles, and extended outdoor exposure. These demanding conditions require distribution boards that can maintain electrical safety and operational integrity over decades of service. The material selection for enclosures directly impacts system performance, maintenance requirements, and total cost of ownership.
Learn More:
EV Consumer Units Fix Bottlenecks in EV Charging Business
From Charger to Car: Complete Protection with Our EV Consumer Units
.jpg)
An EV charger distribution board serves as the critical electrical hub that manages power distribution, surge protection, and safety systems for electric vehicle charging stations. These specialized panel distribution boards integrate multiple protection devices including MCBs (Miniature Circuit Breakers), RCBOs (Residual Current Breaker with Overcurrent Protection), RCCBs (Residual Current Circuit Breakers), and SPDs (Surge Protection Devices) to ensure safe, reliable power delivery to EV charging equipment.
The EV consumer unit must handle sustained high-current loads while providing instantaneous fault protection and earth leakage detection. Unlike standard electrical panels, EV distribution boards experience frequent load cycling as vehicles connect and disconnect, creating thermal stress and mechanical wear that demands superior material performance and component integration.
Learn More:
EV Charger Consumer Unit Guide
Why SPDs Are a Must-Have in EV Charger Distribution Boards
EV Charger Distribution Box vs Standard Distribution Box: What's the Difference?
Procurement teams and electrical contractors consistently identify four critical concerns when selecting EV charger distribution boards: operational reliability under demanding conditions, predictable maintenance requirements, total lifecycle costs, and long-term electrical safety compliance. These stakeholders require distribution boards that minimize unplanned downtime, reduce maintenance interventions, and maintain safety certifications throughout their operational life.
Field experience demonstrates that material-related failures account for approximately 30% of EV charging infrastructure maintenance calls. Issues such as enclosure corrosion, thermal expansion problems, and component mounting failures often trace back to inappropriate material selection during initial specification and procurement phases.
Learn More EV Charger Distribution Board:
Mini Metal EV Charging Unit Surface Mounted

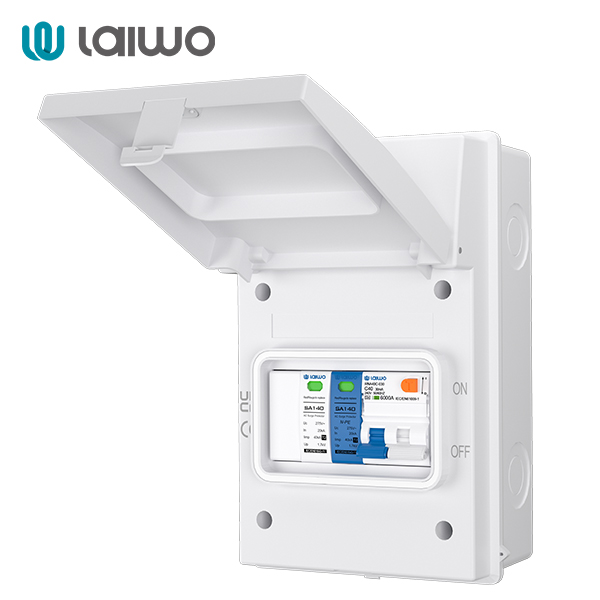

5Way IP65 AL EV Charging Unit Surface Mounted
8Way IP65 AL EV Charging Unit Surface Mounted
The enclosure material fundamentally affects thermal management, corrosion resistance, mechanical stability, and electromagnetic compatibility of EV distribution boards. Aluminium and steel enclosures exhibit distinct performance characteristics that directly impact electrical safety, component longevity, and maintenance requirements. Understanding these material differences enables informed decisions that optimize long-term return on investment while ensuring regulatory compliance and operational reliability.
EV charger distribution boards are classified according to enclosure material composition (aluminium alloy, galvanized steel, or stainless steel), mounting configuration (wall-mounted, pole-mounted, or floor-standing), and environmental protection rating (IP rating from IP21 to IP66). This classification system enables precise specification matching to application requirements and environmental conditions.
Material selection interacts significantly with mounting style and protection level requirements. For example, pole-mounted EV consumer units benefit from aluminium's weight advantage, while floor-standing industrial panels may prioritize steel's structural rigidity. Understanding these interdependencies ensures optimal material selection for specific deployment scenarios.
Enclosure materials directly influence three critical performance parameters in EV applications. Electrical safety depends on the material's grounding effectiveness, electromagnetic shielding properties, and dielectric strength under fault conditions. Heat dissipation characteristics affect internal component temperatures and thermal cycling stress, while corrosion resistance determines enclosure longevity in outdoor and industrial environments.
Aluminium exhibits superior thermal conductivity (approximately 4x that of steel), enabling more effective heat dissipation from internal components such as RCBOs and SPDs. However, steel provides superior electromagnetic shielding and grounding reliability, which can be critical in high-interference environments or installations requiring enhanced electrical safety margins.
Learn More:
ABS vs PC vs Nylon: Choosing the Right Circuit Breaker Enclosure
Metal Vs. Plastic Distribution Boxes: Choosing The Right One For Your Project
The interaction between enclosure materials and internal components significantly affects system performance and reliability. Aluminium enclosures require specialized mounting techniques for MCBs and RCBOs to ensure secure mechanical connections and proper thermal management. Steel enclosures provide standard DIN rail mounting with proven long-term reliability but may require enhanced ventilation for thermal management.
Busbar connections and SPD installations are particularly sensitive to enclosure material properties. Aluminium's thermal expansion characteristics require careful consideration of busbar mounting and connection torque specifications, while steel's magnetic properties can affect SPD response times and effectiveness in certain configurations.
Learn More:
Why RCBOs Are a Must-Have in Modern Distribution Boards
Why SPDs Are a Must-Have in EV Charger Distribution Boards
Aluminium distribution boards offer compelling technical advantages for EV charging applications. Weight reduction of 40-60% compared to steel equivalents simplifies installation and reduces structural requirements for pole-mounted configurations. Natural corrosion resistance eliminates the need for protective coatings in most environments, while superior thermal conductivity enables more compact designs and improved component life through better heat management.
The material's inherent properties provide long-term stability in outdoor environments without degradation of electrical or mechanical performance. Aluminium's thermal characteristics particularly benefit high-load EV applications where internal heat generation from RCBOs, SPDs, and busbars can affect component reliability and service life.
Aluminium distribution boards excel in outdoor EV charging installations where weight, weather resistance, and thermal performance are critical factors. Coastal and marine environments benefit significantly from aluminium's natural corrosion resistance, eliminating concerns about salt spray and humidity exposure that can compromise steel enclosures over time.
Pole-mounted EV consumer units represent an ideal application for aluminium enclosures, where weight reduction simplifies installation procedures and reduces structural requirements. The material's aesthetic properties also provide long-term visual appeal without maintenance painting or coating renewal typically required for steel alternatives.
Aluminium enclosures present certain limitations that must be considered during specification and installation. Lower mechanical rigidity compared to steel can affect dimensional stability under thermal cycling and mechanical stress. Thread strength limitations require careful torque specification and may necessitate thread inserts for critical connections.
Compatibility with standard electrical accessories can be challenging, as many MCBs, RCBOs, and mounting systems are designed for steel enclosures. This may require specialized mounting solutions or component selection to ensure reliable long-term performance and compliance with electrical standards.
Aluminium distribution boards typically command a 20-40% premium over steel equivalents, but this initial cost difference must be evaluated against total lifecycle costs. In applications with high installation costs (such as pole-mounted units), weight reduction can offset material premiums through simplified installation procedures and reduced structural requirements.
Long-term maintenance advantages include elimination of coating renewal, superior corrosion resistance, and improved thermal management extending component life. These factors can justify the aluminum premium in installations where maintenance access is difficult or costly, or where long service life without intervention is required.
In harsh environmental conditions, aluminium and steel exhibit different failure modes and service life characteristics. Aluminium maintains structural integrity and electrical properties even under severe corrosion exposure, while steel may experience gradual degradation affecting both mechanical and electrical performance.
However, steel's superior mechanical strength provides better impact resistance and dimensional stability under extreme temperature variations. The choice between materials in harsh environments requires careful evaluation of specific environmental stressors and their potential impact on system safety and reliability over the intended service life.
Steel distribution boards maintain market dominance in EV charging infrastructure due to proven reliability, cost-effectiveness, and compatibility with standard electrical components. The material's mechanical properties provide excellent dimensional stability and mounting security for MCBs, RCBOs, and other protection devices, while established manufacturing processes ensure consistent quality and availability.
Steel's electromagnetic shielding properties and grounding reliability make it particularly suitable for high-power EV charging applications where electrical safety margins are critical. The material's long history in electrical applications provides confidence in performance and regulatory compliance across diverse markets and applications.
Steel enclosures provide superior structural robustness, withstanding mechanical stress, vibration, and impact without compromising internal component mounting or electrical connections. This mechanical stability is particularly important in industrial EV charging installations where equipment may be subject to operational stress or potential impact damage.
Cost-effectiveness remains a significant advantage, with steel distribution boards typically offering 20-40% lower initial costs compared to aluminium alternatives. Grounding reliability is exceptional, providing consistent electrical safety performance and simplified compliance with electrical codes and standards.
Steel distribution boards present certain trade-offs that must be managed through proper specification and installation practices. Higher weight increases installation complexity and structural requirements, particularly for pole-mounted EV consumer units. Corrosion control requires protective coatings or galvanization, which may require periodic maintenance or renewal depending on environmental exposure.
Painting and coating maintenance represents an ongoing operational consideration, particularly in outdoor installations where UV exposure and weather cycling can degrade protective finishes over time. These maintenance requirements must be factored into total lifecycle cost calculations.
Steel distribution boards excel in indoor EV charging installations where weight and corrosion resistance are less critical factors. Commercial and industrial charging hubs benefit from steel's structural robustness and ability to accommodate complex component configurations with proven reliability.
High-power charging installations particularly benefit from steel's electromagnetic shielding properties and thermal mass, which can help manage electrical noise and thermal transients in demanding applications. The material's compatibility with standard electrical components simplifies specification, installation, and maintenance procedures.
Steel distribution boards provide excellent durability in controlled indoor environments but require careful consideration of aesthetic and maintenance factors in outdoor installations. Indoor applications can take advantage of steel's structural properties without concern for weather exposure or corrosion, while outdoor installations must balance durability requirements against maintenance accessibility and long-term appearance.
| Performance Factor | Aluminium (AL) | Steel/Stainless | Impact on EV Applications |
|---|---|---|---|
| Weight | 40-60% lighter | Heavier, more structural support needed | Critical for pole-mounted EV units |
| Corrosion Resistance | Excellent natural resistance | Requires protective coatings | Important for outdoor charging points |
| Thermal Conductivity | 4x better than steel | Lower, may require enhanced ventilation | Affects RCBO and SPD component life |
| Initial Cost | 20-40% premium | Lower upfront investment | Budget consideration for large deployments |
| Maintenance Requirements | Minimal, no coating renewal | Periodic coating/painting may be needed | Lifecycle cost impact |
| Mechanical Strength | Lower rigidity, thread limitations | Superior structural robustness | Important for high-stress installations |
| EMC Performance | Good, may require additional shielding | Excellent electromagnetic shielding |
Critical for high-power DC charging |
Market requirements vary significantly between residential and industrial EV charging applications. UK residential installations often prioritize aesthetic appeal and low maintenance, making aluminium EV consumer units attractive for outdoor residential charging points. The material's corrosion resistance and appearance retention justify the premium in high-value residential applications.
Industrial EV charging across Europe and Asia emphasizes reliability, cost-effectiveness, and compatibility with existing electrical infrastructure. Steel distribution boards align better with these requirements, providing proven performance at lower initial costs while accommodating complex protection schemes and high-power charging equipment.
Component integration requirements differ significantly between aluminium and steel enclosures. RCBO mounting in aluminium enclosures may require specialized DIN rail systems or mounting adapters to ensure proper mechanical and thermal connections. Steel enclosures provide standard mounting interfaces with proven long-term reliability.
SPD installation considerations include grounding effectiveness and thermal management. While steel provides superior grounding reliability, aluminium's thermal properties can improve SPD performance and longevity in high-temperature environments. Busbar connections require careful torque specification and may benefit from dissimilar metal protection in aluminium installations.
Specification terminology and market positioning vary with material selection. "EV consumer unit" terminology often implies residential or light commercial applications where aluminium's aesthetic and maintenance advantages provide value. "Panel distribution board" specifications typically emphasize industrial reliability and cost-effectiveness, aligning with steel's strengths in these applications.
Installation environment (indoor/outdoor, coastal, industrial)
Mounting requirements (wall, pole, floor-standing)
Weight constraints and structural considerations
Maintenance accessibility and lifecycle requirements
Initial budget vs. total cost of ownership priorities
Component integration requirements (RCBO, SPD, busbar specifications)
Regulatory compliance and certification requirements
Aesthetic and appearance requirements
Expected service life and replacement planning
EV charging load profiles create unique requirements for distribution board design and material selection. Sustained high-current loads generate significant internal heat, making thermal management critical for component reliability. Material selection directly affects thermal dissipation capabilities and temperature rise within the enclosure.
Dedicated feeder requirements and surge protection coordination must consider the enclosure's grounding effectiveness and electromagnetic compatibility. Future load expansion planning should account for material limitations on modification and component addition capabilities.
Environmental requirements fundamentally drive material selection decisions. Outdoor installations demand superior corrosion resistance and UV stability, favoring aluminium in many applications. Indoor installations can prioritize cost-effectiveness and component compatibility, often favoring steel solutions.
Climate exposure considerations include temperature cycling, humidity, salt spray, and industrial contamination. Each environmental factor affects material performance differently, requiring careful evaluation of local conditions and long-term exposure expectations.
Regulatory compliance requirements affect material selection through specific testing and certification standards. BS EN 61439 and IEC 61439 standards specify thermal, mechanical, and electrical performance requirements that may be easier to achieve with certain materials. IP rating requirements for environmental protection interact with material properties and enclosure design.
CE marking requirements in European markets include specific material and manufacturing standards that must be considered during specification. Compliance documentation and testing costs may vary between material options, affecting total project costs.
SPD and RCCB/RCBO coordination requires careful consideration of grounding effectiveness, thermal management, and electromagnetic compatibility. Material selection affects each of these factors, potentially influencing protection device performance and coordination effectiveness.
Grounding system design must account for material properties and potential galvanic compatibility issues between dissimilar metals. Thermal management of protection devices benefits from aluminium's superior thermal conductivity but may require specialized mounting techniques to ensure reliability.
Future-proofing considerations include anticipated load growth, smart grid integration requirements, and modular expansion capabilities. Material selection affects modification ease and expansion possibilities, with steel typically providing greater flexibility for field modifications and additions.
Smart grid compatibility may require enhanced electromagnetic compatibility and communication system integration, factors that interact with enclosure material properties and shielding effectiveness.
Common material selection mistakes include prioritizing initial cost over lifecycle value, ignoring environmental exposure requirements, and failing to consider component integration challenges. These errors can result in premature failures, increased maintenance costs, and safety compliance issues.
IP rating specifications must match actual environmental conditions, with material selection supporting the required protection level. Thermal capacity calculations must account for material properties and heat dissipation capabilities to ensure reliable operation under maximum load conditions.
Material specification matching environmental requirements
IP rating appropriate for installation environment
Surge protection device integration and coordination
Modular design for future expansion capabilities
Component mounting compatibility and reliability
Thermal management and ventilation adequacy
Grounding system effectiveness and compliance
Maintenance access and serviceability
Long-term ROI evaluation must consider initial costs, maintenance requirements, expected service life, and safety risk mitigation. Aluminium's higher initial cost may be justified by reduced maintenance and longer service life in appropriate applications, while steel's lower initial cost and proven reliability may provide better value in cost-sensitive installations.
Safety risk reduction through appropriate material selection can provide significant value through reduced liability exposure and compliance confidence. Quantifying these benefits helps justify material selection decisions and total lifecycle investment.
Technical specifications should clearly state material requirements, performance criteria, and compliance standards. Include specific material grades, surface treatment requirements, and environmental performance standards. Specify component compatibility requirements and mounting system standards to ensure proper integration.
Performance-based specifications can allow material optimization while ensuring functional requirements are met. Include lifecycle cost considerations and maintenance requirements to enable informed supplier responses and value optimization.
Choose aluminium distribution boards for outdoor installations, pole-mounted configurations, coastal environments, and applications where weight reduction and corrosion resistance justify the premium cost. Aluminium excels in residential EV charging applications and installations requiring minimal maintenance intervention.
Select steel distribution boards for indoor installations, cost-sensitive projects, high-power charging applications, and installations requiring maximum component compatibility and mechanical robustness. Steel provides proven reliability and cost-effectiveness for commercial and industrial EV charging infrastructure.
Successful material selection requires balancing initial costs against lifecycle value, environmental requirements against performance needs, and compliance requirements against practical installation considerations. Neither material is universally superior; each offers distinct advantages in appropriate applications.
Decision frameworks should prioritize critical performance factors specific to each installation while considering long-term operational requirements and maintenance capabilities. Total cost of ownership analysis provides the most reliable basis for material selection decisions.
Material selection for EV distribution boards should be treated as a strategic investment in system reliability and long-term performance. The decision impact extends beyond initial procurement costs to affect maintenance requirements, safety compliance, and operational reliability over decades of service.
Engage qualified suppliers and technical specialists to ensure material selection aligns with specific application requirements and long-term operational objectives. Proper material selection contributes significantly to EV charging infrastructure success and customer satisfaction.
Partner with manufacturers holding relevant certifications and demonstrating expertise in both material technologies and EV charging applications. Verify compliance with applicable standards and request performance data specific to your application requirements.
Establish clear specification criteria, performance expectations, and quality standards. Maintain ongoing supplier relationships that support system optimization and continuous improvement in material selection and application design.
Q1: What material is best for outdoor EV charger distribution boards?
Aluminium is generally preferred for outdoor EV charger distribution boards due to superior corrosion resistance, excellent thermal management, and reduced maintenance requirements. The material's natural weather resistance eliminates coating renewal needs while providing reliable long-term performance in outdoor environments.
Q2: Is aluminium more cost-effective or premium for EV charger stations?
Aluminium represents a premium material choice with 20-40% higher initial costs compared to steel. However, lifecycle cost analysis may favor aluminium in applications with difficult maintenance access, harsh environments, or weight-sensitive installations where the premium is justified by reduced operational costs.
Q3: Can I use a standard metal consumer unit for my EV charging setup?
Standard metal consumer units can be used for EV charging applications if they meet the specific requirements for load capacity, component integration, and environmental protection. Ensure the unit accommodates EV-specific protection devices like Type B RCDs and appropriate SPD coordination for reliable and compliant operation.
Q4: How does surge protection affect material choice?
Surge protection effectiveness depends on grounding reliability and electromagnetic shielding, both influenced by enclosure material. Steel provides superior grounding and EMC performance, while aluminium offers better thermal management for SPD components. Consider both factors when coordinating surge protection with material selection.
Q5: Should EV charger distribution board specifications always state material type?
Yes, specifications should clearly state material requirements including grade, surface treatment, and performance criteria. Material selection affects thermal performance, component compatibility, and environmental suitability, making it essential for ensuring proper system design and long-term reliability.
