The electric vehicle revolution is transforming our electrical infrastructure landscape at an unprecedented pace. As governments worldwide mandate the phase-out of internal combustion engines and businesses rush to install EV charging points, the demand for robust, reliable distribution boards has never been higher. However, this rapid deployment has exposed a critical vulnerability in many installations: inadequate surge protection.

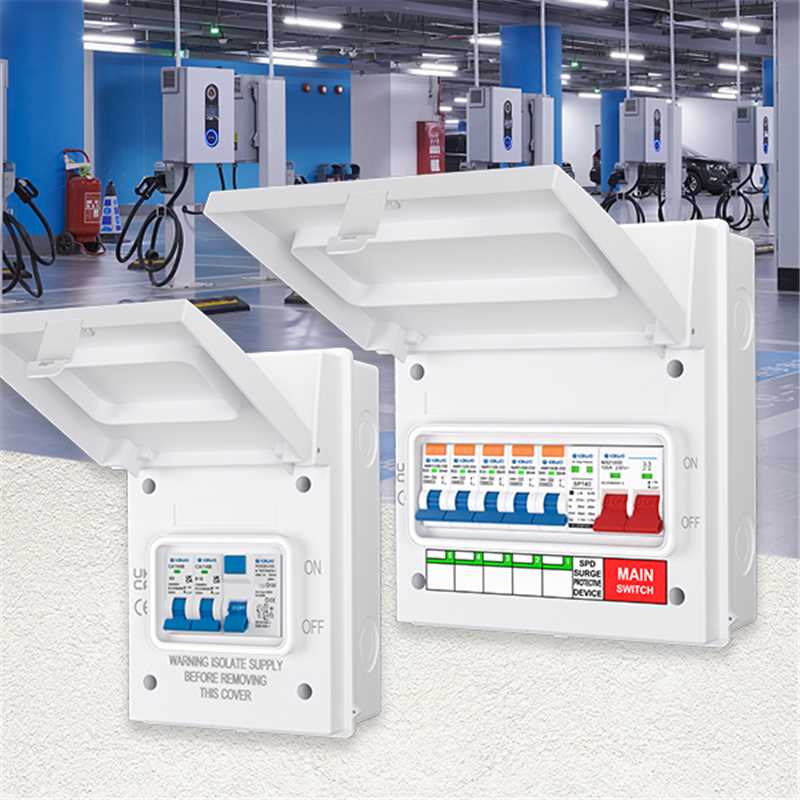

.jpg)
The UK alone is targeting 300,000 public charge points by 2030, while Europe collectively aims for over 1 million charging stations. Each installation requires sophisticated low voltage distribution boxes and EV charger consumer units capable of handling high-power loads ranging from 7kW domestic chargers to 350kW rapid charging systems.
Unlike traditional electrical installations, EV charging infrastructure operates in demanding environments with unique electrical characteristics. The combination of high-power switching, outdoor exposure, and critical uptime requirements creates a perfect storm for surge-related failures.
Learn More: EV Charger Consumer Unit Guide
EV charging systems are particularly vulnerable to surge events due to several factors:
High-power switching: Rapid connect/disconnect cycles create internal surge conditions
Outdoor exposure: Direct lightning strikes and atmospheric disturbances
Grid interaction: Power factor correction and harmonic filtering equipment sensitivity
Communication systems: Integrated RFID, cellular, and networking equipment
Industry Insight: A single lightning-induced surge can destroy multiple EV chargers simultaneously, with repair costs exceeding £50,000 per incident and weeks of downtime affecting customer satisfaction and revenue.
Surge Protection Devices are sophisticated electronic components designed to detect voltage spikes and safely divert excess energy to ground within microseconds. In distribution panel boards, SPDs act as the first line of defense against transient overvoltages that could otherwise cascade through the entire electrical system.
Learn More: What is the difference between a circuit breaker and a circuit protector?
An SPD monitors the voltage differential between live conductors and earth continuously. When a surge exceeds the device's threshold voltage (typically 275V for 230V systems), internal components such as metal oxide varistors (MOVs) or gas discharge tubes activate, creating a low-resistance path to ground.
The critical parameters for SPD selection include:
Maximum Continuous Operating Voltage (Uc) - Must be ≥1.1 × system voltage
Voltage Protection Level (Up) - Lower values provide better protection
Nominal Discharge Current (In) - Minimum 5kA for Type 2 devices
Maximum Discharge Current (Imax) - Should exceed expected surge levels
| SPD Type | Application | Installation Location | Typical Rating | EV Charger Use |
|---|---|---|---|---|
| Type 1 (Class I) | Direct lightning protection | Main distribution board | 25kA-100kA | Outdoor charging stations |
| Type 2 (Class II) | Induced surge protection | Sub-distribution boards | 5kA-40kA | Most EV charger installations |
| Type 3 (Class III) | Equipment protection | Final circuits | 1.5kA-5kA | Sensitive control circuits |
Traditional MCB DB boxes designed for domestic or light commercial use typically incorporate basic surge protection, if any. These standard units often feature:
Limited surge current handling (≤5kA)
Single-point protection without coordination
No status indication or remote monitoring
Inadequate protection for communication circuits
EV charging applications demand enhanced protection levels, with Type 2 SPDs rated at minimum 20kA for outdoor installations and coordinated multi-stage protection for complex charging networks.
EV charging systems present fundamentally different electrical characteristics compared to conventional loads. The power electronics within modern chargers create high-frequency switching noise, while the substantial inrush currents during vehicle connection can trigger false surge conditions in inadequately protected systems.
Key considerations for EV charger consumer units include:
Power density: 7kW-22kW loads in compact enclosures
Harmonic distortion: Power factor correction equipment sensitivity
Communication integration: RFID, WiFi, cellular, and backend connectivity
Safety systems: RCD/RCBO protection requiring clean power supply
Public charging infrastructure faces the harshest operating conditions in the electrical industry. Unlike protected indoor installations, outdoor EV charging stations must withstand:
Direct lightning exposure: Tall charging posts act as lightning rods
Atmospheric surges: Cloud-to-cloud lightning inducing voltages in extended cable runs
Grid instability: Switching operations in transmission networks
Ground potential rise: Lightning strikes affecting earth reference levels
Critical Specification: Outdoor EV charging stations require Type 1 SPDs at the main incomer (rated ≥25kA) plus Type 2 protection for individual charging circuits (rated ≥20kA).
Case Study 1: Motorway Service Station
A 350kW rapid charging hub experienced simultaneous failure of six charging units following a nearby lightning strike. Investigation revealed inadequate surge protection in the main distribution board, resulting in £180,000 replacement costs and three weeks downtime during peak summer travel.
Case Study 2: Corporate Fleet Charging
A logistics company's 40-bay charging facility suffered recurring control system failures during winter storms. Retrofitting coordinated SPD protection reduced failure rates by 95% and eliminated costly emergency callouts.
When specifying SPDs for EV charging applications, buyers must evaluate multiple technical parameters to ensure adequate protection:
Surge Current Rating (In/Imax):
The SPD must handle expected surge currents without failure. For EV charging installations:
Domestic installations: Type 2, In ≥ 5kA
Commercial installations: Type 2, In ≥ 20kA
Outdoor rapid charging: Type 1, In ≥ 25kA
Voltage Protection Level (Up):
This critical parameter determines the residual voltage presented to protected equipment. For sensitive EV charging electronics, specify Up ≤ 1.5kV at the equipment terminals.
Energy Handling Capability:
While often overlooked, the energy rating (measured in kJ) determines the SPD's ability to withstand multiple surge events. Commercial EV installations should specify ≥200kJ per phase.
Effective surge protection requires coordinated placement throughout the electrical installation:
Main Incomer Protection:
Install Type 1 or Type 2 SPDs at the main distribution board incomer, protecting the entire installation from external surges. Use 3+1 configuration (three phases plus neutral) for TN-S systems.
Feeder Protection:
Each EV charger feeder should incorporate dedicated Type 2 SPD protection, particularly important for installations with long cable runs or outdoor routing.
Equipment Protection:
High-value rapid chargers may warrant additional Type 3 SPD protection for control circuits and communication systems.
SPDs must coordinate with existing protection devices to ensure selective operation:
Upstream MCB: Size according to SPD manufacturer recommendations, typically 100A-125A for Type 1, 40A-63A for Type 2
RCD/RCBO Coordination: Use Type A RCDs for EV circuits, ensuring SPD leakage current doesn't cause nuisance tripping
Disconnection: Install SPD disconnection devices for maintenance safety
| Feature | Standard Distribution Box | EV Charger Distribution Box | Critical for EV? |
|---|---|---|---|
| SPD Integration | Optional/Basic | Multi-stage, coordinated | ✓ Essential |
| Current Rating | 63A-100A typical | 125A-400A standard | ✓ Essential |
| RCD Type | Type AC acceptable | Type A/B required | ✓ Essential |
| Enclosure Rating | IP40 typical | IP54+ for outdoor | ✓ Environment dependent |
| Monitoring/Comms | Not standard | IoT ready, status indication | ✓ Recommended |
When procuring EV charging distribution equipment, use precise technical language to ensure suppliers understand requirements:
Specification Checklist:
"EV-ready consumer unit with integrated Type 2 SPD protection"
"Low voltage distribution box, TPN, 125A rated with SPD coordination"
"Metal consumer unit with 20kA surge protection per IEC 61643-11"
"Distribution panel board with SPD status indication and remote monitoring"
"IP54 rated enclosure for outdoor EV charging applications"
The economic case for SPD protection becomes compelling when considering total cost of ownership:
Initial Investment:
Quality SPD protection: £200-£800 per charging point
Enhanced distribution board: £500-£2,000 premium
Professional installation: £300-£600 additional
Risk Mitigation Value:
Average surge damage: £5,000-£15,000 per incident
Downtime costs: £200-£500 per day per charging point
Emergency repair premiums: 200-300% standard rates
Insurance excess and premium increases
ROI Analysis: SPD protection typically pays for itself after preventing just one significant surge event, with ongoing benefits including reduced insurance premiums and improved system reliability.
Essential Features Checklist:
✓ Coordinated SPD protection: Type 1/2 with proper backup protection
✓ Adequate current rating: 125A minimum for commercial installations
✓ Type A RCD protection: Essential for EV charging circuits
✓ Metal enclosure: Superior EMC performance and durability
✓ Individual feeder protection: Dedicated MCB/RCBO per charging point
✓ Status indication: Visual/remote indication of SPD condition
✓ Future expansion capacity: 20% spare ways minimum
✓ IP rating appropriate to environment: IP54+ for outdoor applications
✓ Certification compliance: CE marking, BS EN standards
✓ Manufacturer support: Technical support and spare parts availability
Warranty Implications:
Many EV charger manufacturers void warranties if adequate surge protection isn't installed. Always verify protection requirements before installation to maintain warranty coverage.
Insurance Considerations:
Commercial insurance policies increasingly require evidence of adequate electrical protection. Inadequate surge protection may result in claim rejection and premium increases.
Safety and Liability Risks:
Surge-induced failures can create safety hazards including fire risk and electric shock. Duty holders under CDM regulations must ensure adequate protection measures.
Compliance Failures:
BS 7671 (18th Edition) increasingly emphasizes surge protection requirements. Installations without adequate SPDs may fail inspection and require costly remediation.
| Risk Factor | Without SPD | With Proper SPD | Business Impact |
|---|---|---|---|
| Lightning strikes | Total system failure | Continued operation | Revenue protection |
| Grid disturbances | Equipment damage | Automatic protection | Reduced maintenance |
| Switching surges | Gradual degradation | Extended equipment life | Lower TCO |
| Insurance claims | Potential rejection | Full coverage | Financial security |
| Warranty issues | Voided protection | Maintained coverage | Cost predictability |
Standard Board Acceptable:
Single domestic charging point, indoor installation
Existing surge protection already installed upstream
Low-lightning-risk areas with stable grid supply
Temporary or short-term installations
EV-Specific Board Essential:
Commercial/public charging installations
Outdoor or exposed locations
Multiple charging points or high-power systems
Critical applications requiring maximum uptime
Areas with unstable grid supply or high lightning activity
The EV charging industry's rapid growth demands a mature approach to electrical protection. SPD integration isn't just about preventing equipment damage—it's about ensuring the reliability and safety that will underpin public confidence in electric vehicle adoption.
Strategic Recommendation: Specify coordinated SPD protection as standard across all EV charging projects. The marginal cost increase is insignificant compared to the risks of inadequate protection in this critical infrastructure sector.
What happens if my EV charger distribution board has no SPD?
Without SPD protection, your EV charging installation is vulnerable to surge-induced damage from lightning strikes, grid disturbances, and switching operations. This can result in:
Complete charger failure requiring replacement (£5,000-£15,000+ per unit)
Damage to control systems, payment terminals, and communication equipment
Extended downtime affecting revenue and customer satisfaction
Potential safety hazards including fire risk
Voided equipment warranties and insurance coverage issues
Non-compliance with current electrical standards (BS 7671:2018+A2)
The risk is particularly high for outdoor installations and areas with frequent thunderstorm activity.
Can a standard consumer unit handle surge protection for EV charging?
Standard consumer units typically provide inadequate surge protection for EV charging applications. Key limitations include:
Insufficient surge current rating: Standard units often limited to 5kA, while EV installations require 20kA+ for outdoor applications
Single-point protection: No coordination between protection stages
Inadequate current rating: Standard units typically 63-100A vs 125-400A needed for commercial EV charging
Wrong RCD type: EV charging requires Type A or Type B RCDs, not the Type AC common in standard units
No status indication: Cannot monitor SPD condition for maintenance purposes
For domestic single-charger installations in low-risk environments, a standard unit might suffice with proper upstream protection, but commercial installations always require EV-specific distribution boards.
