Low-voltage switchgear represents the cornerstone of modern electrical distribution systems, operating within voltage ranges up to 1,000V AC or 1,500V DC. This critical infrastructure encompasses a comprehensive assembly of switching devices, protection equipment, control apparatus, and measuring instruments, all housed within accessible metal enclosures. The primary functions include power distribution, circuit protection, electrical isolation, and operational control across industrial, commercial, and residential applications.
At its core, low-voltage switchgear serves as the intelligent interface between incoming power supply and final distribution circuits. It incorporates essential components such as MCBs (Miniature Circuit Breakers), RCCBs (Residual Current Circuit Breakers), RCBOs (Residual Current Breakers with Overcurrent protection), main switch disconnectors, and fuses to ensure safe, reliable, and efficient power distribution.
Modern industrial facilities, commercial buildings, and infrastructure projects demand increasingly sophisticated power distribution solutions. Low-voltage switchgear provides the flexibility, scalability, and protection required to support diverse electrical loads while maintaining operational continuity. From manufacturing plants requiring precise motor control to data centers demanding uninterrupted power supply, LV switchgear forms the backbone of electrical safety and operational efficiency.
The economic impact of properly specified switchgear extends far beyond initial investment costs. Quality switchgear assemblies minimize downtime, reduce maintenance requirements, and provide the foundation for future system expansion. In contrast, inadequate switchgear selection can result in costly failures, regulatory compliance issues, and safety hazards that far exceed any initial cost savings.
For engineering professionals, electrical contractors, and procurement specialists, switchgear quality directly impacts project success, client satisfaction, and long-term profitability. High-quality components such as certified MCBs, RCCBs, and main switches provide predictable performance, simplified maintenance, and regulatory compliance assurance.
Quality switchgear components offer superior breaking capacities, enhanced thermal management, and extended operational lifespans. These characteristics translate into reduced callbacks, warranty claims, and liability exposure while establishing reputation for reliability and professional excellence.
According to IEC 61439 standards, low-voltage switchgear assemblies operate within defined voltage parameters: up to 1,000V AC (50/60Hz) or 1,500V DC. These assemblies integrate multiple electrical devices within standardized enclosures, providing coordinated switching, protection, and control functions for electrical distribution systems.
Typical configurations range from simple distribution boards serving individual buildings to complex motor control centers managing industrial processes. Applications span residential installations, commercial office buildings, manufacturing facilities, data centers, healthcare institutions, and critical infrastructure projects requiring reliable power distribution and comprehensive protection.
Low-voltage switchgear differs fundamentally from medium-voltage (1kV-35kV) and high-voltage (>35kV) alternatives in design philosophy, protection requirements, and application scope. LV switchgear emphasizes accessibility, modularity, and cost-effectiveness while maintaining comprehensive protection through devices like MCBs, RCCBs, and RCBOs.
Medium and high-voltage switchgear require specialized insulation systems, arc-quenching technologies, and enhanced safety protocols due to higher energy levels and fault currents. LV switchgear leverages standardized mounting systems, plug-in connectivity, and user-friendly interfaces suitable for routine operation and maintenance by qualified personnel.
Modern LV switchgear utilizes robust metal enclosures providing IP protection ratings appropriate for installation environments. Compartmentation separates functional areas, enhancing safety during maintenance operations while preventing fault propagation between circuits. Standard enclosure materials include galvanized steel with powder coating or stainless steel for corrosive environments.
Busbar systems distribute incoming power throughout the switchgear assembly using copper or aluminum conductors. Copper busbars offer superior conductivity and corrosion resistance, while aluminum alternatives provide cost advantages for larger installations. Proper busbar sizing ensures adequate current-carrying capacity with appropriate temperature rise characteristics under normal and fault conditions.
Switchgear compartmentation segregates different functional areas for enhanced safety and accessibility. The breaker chamber houses protection devices such as MCBs and RCBOs, while cable chambers provide secure termination points for incoming and outgoing conductors. Busbar chambers contain main distribution conductors with appropriate insulation and protection barriers.
Component mounting methods directly impact maintenance procedures and operational flexibility. Fixed mounting provides cost-effective solutions for stable installations, while plug-in systems enable rapid device replacement without extensive rewiring. Withdrawable designs offer maximum flexibility for critical applications requiring minimal downtime during maintenance operations.
Low-voltage switchgear serves as the central distribution hub, efficiently routing electrical power from main incoming lines to individual branch circuits. This distribution function incorporates load balancing, phase coordination, and capacity management to optimize system performance while accommodating diverse load characteristics across the installation.
Effective power distribution requires careful consideration of load diversity factors, future expansion requirements, and operational flexibility. Quality main switch disconnectors provide reliable isolation capabilities, while properly rated busbars ensure adequate current distribution without excessive voltage drop or thermal stress.
Comprehensive circuit protection represents a fundamental switchgear function, safeguarding equipment, personnel, and property from electrical faults. MCBs provide overload and short-circuit protection with precise trip characteristics, while RCCBs detect earth leakage currents that could pose electrocution hazards or fire risks.
RCBOs combine overcurrent and residual current protection in single devices, offering space-efficient solutions for comprehensive circuit protection. Coordinated protection schemes ensure selective operation, isolating faulted circuits while maintaining power to healthy portions of the electrical system.
Electrical isolation capabilities enable safe maintenance procedures and emergency shutdown operations. Main switch disconnectors provide visible isolation points, ensuring de-energized conditions during maintenance activities. Proper isolation procedures, supported by appropriate switching devices, prevent accidents and enable confident maintenance operations.
Emergency shutdown functions allow rapid system de-energization during fault conditions or safety emergencies. Switchgear design must accommodate emergency stop requirements while providing clear indication of system status and switching device positions.
Modern switchgear incorporates sophisticated switching and control capabilities supporting both local and remote operation. Load management functions enable demand response, energy optimization, and operational scheduling to minimize energy costs while maintaining system reliability.
Control integration supports building management systems, industrial automation platforms, and smart grid applications. Properly specified switching devices provide reliable operation under normal and fault conditions while supporting advanced control and monitoring requirements.
MCBs provide essential overcurrent protection through thermal-magnetic trip mechanisms responding to both overload and short-circuit conditions. The thermal element responds to sustained overloads, while the magnetic element provides instantaneous protection against short-circuit faults. This dual protection ensures equipment protection while minimizing nuisance tripping during normal operations.
Learn More: MCBs Guide: Types, Functions & Electrical Safety Tips

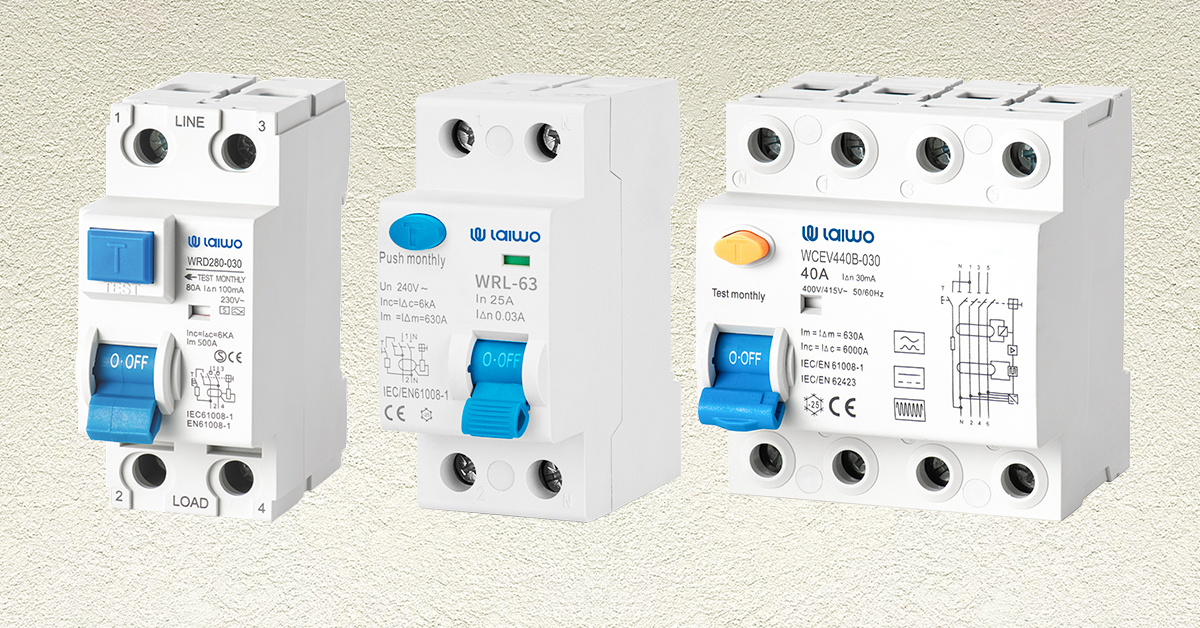

RCCBs detect earth leakage currents that could cause electrocution or fire hazards. These devices monitor current balance between live conductors, tripping when imbalance exceeds predetermined thresholds. Standard sensitivity ratings include 30mA for personal protection and 300mA for fire protection applications.
Learn More: RCCB Guide

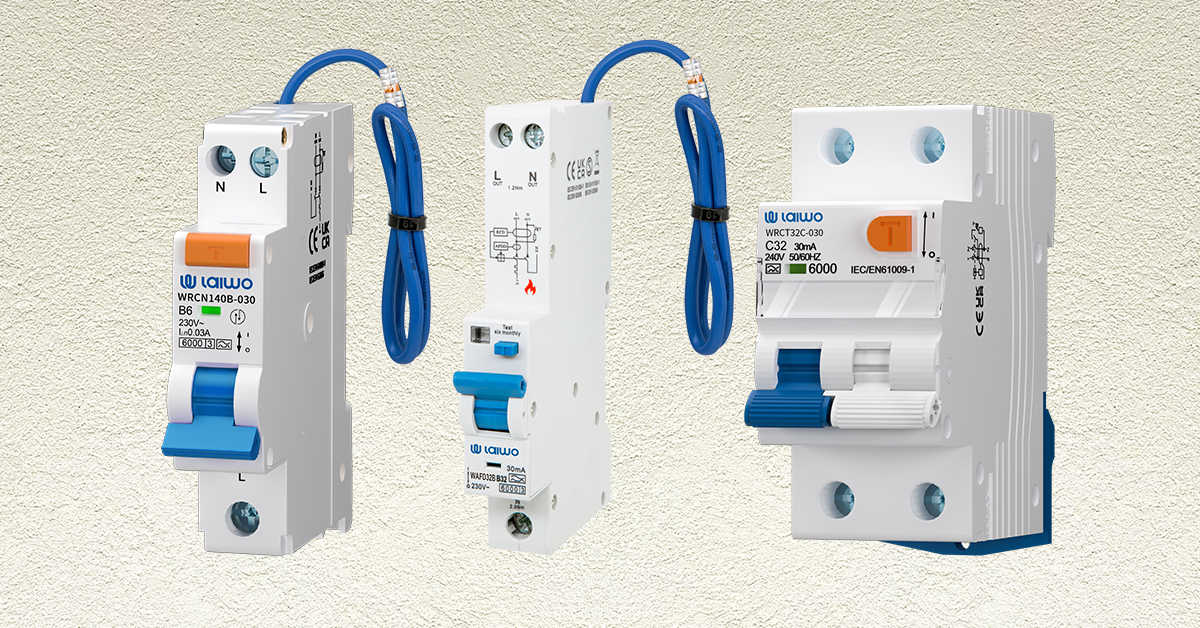

RCBOs integrate MCB and RCCB functions within single devices, providing comprehensive circuit protection including overload, short-circuit, and earth leakage detection. This combination simplifies panel design while ensuring complete protection coverage with coordinated trip characteristics.
Learn More: RCBO Ultimate Guide
.jpg)
Main switch disconnectors provide reliable isolation capabilities essential for safe maintenance operations and emergency shutdown procedures. These devices offer visible isolation gaps and positive indication of switching position, ensuring confident isolation verification during maintenance activities.
Learn More: What Is the Difference Between a Circuit Breaker and a Main Switch Disconnector?

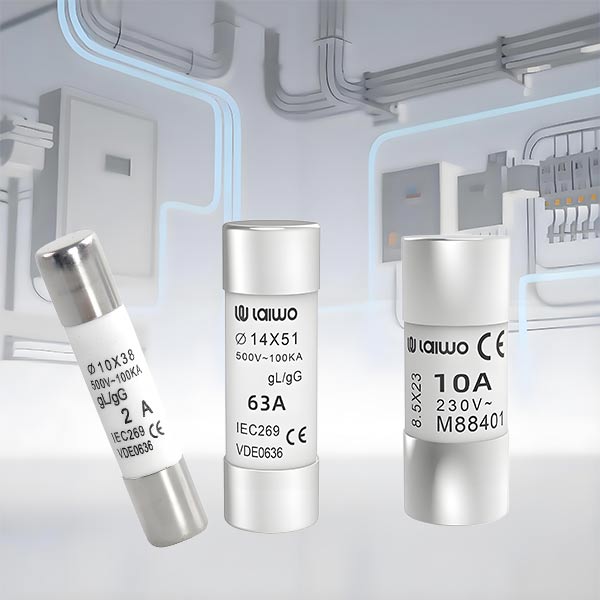

Fuses offer distinct advantages including low cost, extremely fast operation, and high breaking capacity. These characteristics make fuses particularly suitable for applications requiring ultimate short-circuit protection or backup protection coordination with downstream protective devices.
Learn More: What is the difference between a fuse and a MCB?
Comprehensive load assessment forms the foundation for proper switchgear specification. Analysis must encompass current requirements, load diversity factors, future expansion plans, and operational characteristics. Professional load studies provide essential data for component sizing and protective device coordination.
Future expansion planning requires careful consideration of available space, busbar capacity, and protection coordination. Modular switchgear designs accommodate future additions while maintaining system integrity and performance characteristics.
Protection device selection requires systematic evaluation of load characteristics, protection requirements, and coordination objectives. MCBs provide standard overcurrent protection, while RCCBs add earth leakage detection. RCBOs combine both functions for comprehensive single-device protection.
Fuses may provide optimal solutions for specific applications requiring ultimate short-circuit performance or cost-effective protection. Selection criteria must encompass current ratings, breaking capacities, coordination requirements, and maintenance considerations.
Main switch disconnector rating must accommodate maximum load current with appropriate safety margins while providing adequate breaking capacity for fault conditions. Isolation requirements, operational characteristics, and maintenance procedures influence device selection and specification.
Busbar capacity must accommodate maximum load current with appropriate temperature rise characteristics. The number of ways determines circuit quantity and flexibility, while modular layout affects accessibility and future expansion capability. Panel dimensions must accommodate equipment arrangement while meeting space constraints and accessibility requirements.
Maintenance requirements significantly influence switchgear configuration and component selection. Fixed systems provide cost-effective solutions for stable installations, while withdrawable designs minimize downtime during maintenance operations. Critical applications may require withdrawable components to ensure operational continuity during maintenance activities.
Low-quality switchgear components pose significant risks including overheating, fire hazards, and dangerous arcing events. Inadequate materials, poor manufacturing tolerances, and insufficient testing can result in catastrophic failures with severe consequences for personnel safety and property protection.
Quality components undergo rigorous testing and certification processes ensuring reliable performance under specified operating conditions. Certified MCBs, RCCBs, and RCBOs provide predictable protection characteristics and operational reliability throughout their service life.
Non-compliant switchgear exposes projects to regulatory violations, insurance complications, and liability issues. Proper certification to IEC standards and local electrical codes ensures regulatory compliance while providing assurance of quality and safety performance.
False economy through cheap component selection typically results in increased maintenance costs, frequent failures, and extended downtime. Quality components provide superior reliability, extended service life, and reduced total cost of ownership despite higher initial investment.
High-quality switchgear components deliver enhanced reliability and extended operational lifespans through superior materials, manufacturing processes, and quality assurance procedures. These improvements translate directly into reduced maintenance requirements, fewer service calls, and enhanced customer satisfaction.
MCB procurement requires verification of EN60898-1 certification, appropriate current ratings, curve characteristics, breaking capacity, and pole configuration. Quality indicators include manufacturer reputation, test certificates, and compliance documentation.
RCCB selection demands EN61008 compliance verification, sensitivity rating confirmation, type classification, and operational characteristic validation. Proper documentation includes test certificates and installation instructions.
RCBO procurement encompasses EN61009-1 certification, combined protection characteristics, sensitivity ratings, and integration compatibility. Quality assurance includes comprehensive testing documentation and installation guidelines.
Main switch disconnector specification requires EN60947-3 compliance, appropriate current and voltage ratings, breaking capacity verification, and isolation performance confirmation. Quality indicators include operational testing and durability certification.
Fuse selection demands EN60269-1 compliance, appropriate current ratings, breaking capacity verification, and time-current characteristic documentation. Quality assurance includes manufacturer certification and performance testing data.
Common specification errors include inadequate breaking capacity, incorrect curve selection, insufficient earth leakage protection, and poor coordination between protective devices. Avoiding these mistakes requires systematic evaluation of load characteristics, fault levels, and protection coordination requirements.
Future-proofing strategies include modular design adoption, adequate spare capacity provision, and standardized component selection. These approaches facilitate system expansion, component replacement, and maintenance operations while minimizing future modification costs.
Effective supplier communication requires comprehensive specifications including technical parameters, certification requirements, quality standards, and delivery expectations. Detailed datasheets, performance criteria, and compliance documentation ensure accurate quotations and appropriate product selection.
Low-voltage switchgear represents critical infrastructure enabling safe, reliable electrical distribution across diverse applications. Proper specification, quality component selection, and professional installation ensure optimal performance, regulatory compliance, and operational safety throughout the system lifecycle.
Quality components including certified MCBs, RCCBs, RCBOs, main switches, and fuses provide foundation for reliable electrical systems. Investment in quality components delivers superior performance, enhanced safety, and reduced total cost of ownership compared to lower-grade alternatives.
Successful switchgear projects prioritize safety, regulatory compliance, and future scalability through systematic specification processes and quality component selection. Professional engineering analysis, comprehensive documentation, and certified components ensure project success while minimizing risks and maximizing long-term value. The foundation of electrical safety and reliability begins with proper switchgear specification and quality component selection – invest accordingly for optimal results.
