HRC white porcelain body
Copper/Brass contact cap
High grade copper fuse element
Rated voltage: AC500V
Rated current: From 25A to 125A (specifically 25A, 32A, 40A, 50A, 63A, 80A, 100A, 125A)
Application:Large commercial buildings, data centers, airports, and other critical infrastructure
Fusing characteristics: gG/gL/aM/aR
Breaking capacity: 120KA-500V
Certificated with CE by EN60269-1
OEM Service

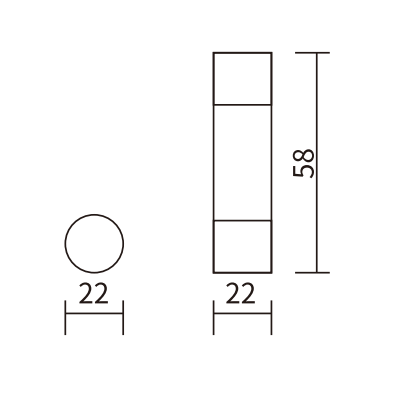

| Product model | Description | Functional class | U(v) | Breaking Capacity (KA) |
| FU25A30 | 25A 30*57 Fuse Link | gG/gL/aM/aR | 500V | 120KA |
| FU32A30 | 32A 30*57 Fuse Link | gG/gL/aM/aR | 500V | 120KA |
| FU40A30 | 40A 30*57 Fuse Link | gG/gL/aM/aR | 500V | 120KA |
| FU50A30 | 50A 30*57 Fuse Link | gG/gL/aM/aR | 500V | 120KA |
| FU63A30 | 63A 30*57 Fuse Link | gG/gL/aM/aR | 500V | 120KA |
| FU80A30 | 80A 30*57 Fuse Link | gG/gL/aM/aR | 500V | 120KA |
| FU100A30 | 100A 30*57 Fuse Link | gG/gL/aM/aR | 500V | 120KA |
| FU125A30 | 125A 30*57 Fuse Link | gG/gL/aM/aR | 500V | 120KA |
INQUIRY NOW
