HRC white porcelain body
Copper/Brass contact cap
High grade copper fuse element
Rated voltage: AC500V
Rated current: From 25A to 100A (specifically 25A, 32A, 40A, 50A, 63A, 80A, 100A)
Application: Industrial and commercial
Fusing characteristics: gG/gL/aM/aR
Breaking capacity: 120KA-500V
Certificated with CE by EN60269-1
OEM Service

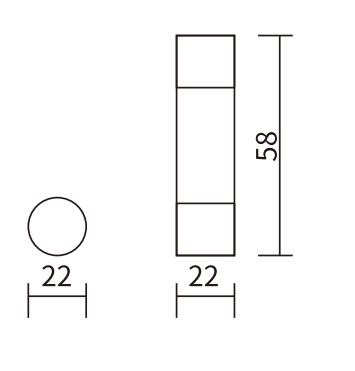

| Product model | Description | Functional class | U(v) | Breaking Capacity (KA) |
| FU25A22 | 25A 22*58 Fuse Link | gG/gL/aM/aR | 500V | 120KA |
| FU32A22 | 32A 22*58 Fuse Link | gG/gL/aM/aR | 500V | 120KA |
| FU40A22 | 40A 22*58 Fuse Link | gG/gL/aM/aR | 500V | 120KA |
| FU50A22 | 50A 22*58 Fuse Link | gG/gL/aM/aR | 500V | 120KA |
| FU63A22 | 63A 22*58 Fuse Link | gG/gL/aM/aR | 500V | 120KA |
| FU80A22 | 80A 22*58 Fuse Link | gG/gL/aM/aR | 500V | 120KA |
| FU100A22 | 100A 22*58 Fuse Link | gG/gL/aM/aR | 500V | 120KA |
