HRC white porcelain body
Copper/Brass contact cap
High grade copper fuse element
Rated voltage: AC500V
Rated current: From 2A to 32A (specifically 2A, 4A, 6A, 8A, 10A, 16A, 20A, 25A, 32A)
Application: Industrial control panels, motor control centers (MCCs), and automation systems.
Fusing characteristics: gG/gL/aM/aR
Breaking capacity: 100KA-500V
Certificated with CE by EN60269-1
OEM Service
| Product model | Description | Functional class | U(v) | Breaking Capacity (KA) |

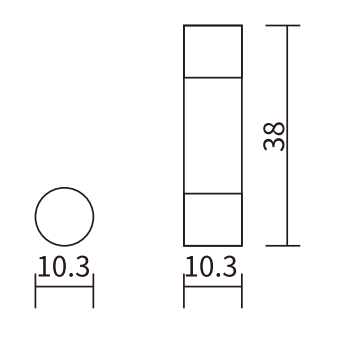

| FU2A10 | 2A 10.3*38 Fuse Link | gG/gL/aM/aR | 500V | 100KA |
| FU4A10 | 4A 10.3*38 Fuse Link | gG/gL/aM/aR | 500V | 100KA |
| FU6A10 | 6A 10.3*38 Fuse Link | gG/gL/aM/aR | 500V | 100KA |
| FU8A10 | 8A 10.3*38 Fuse Link | gG/gL/aM/aR | 500V | 100KA |
| FU10A10 | 10A 10.3*38 Fuse Link | gG/gL/aM/aR | 500V | 100KA |
| FU16A10 | 16A 10.3*38 Fuse Link | gG/gL/aM/aR | 500V | 100KA |
| FU20A10 | 20A 10.3*38 Fuse Link | gG/gL/aM/aR | 500V | 100KA |
| FU25A10 | 25A 10.3*38 Fuse Link | gG/gL/aM/aR | 500V | 100KA |

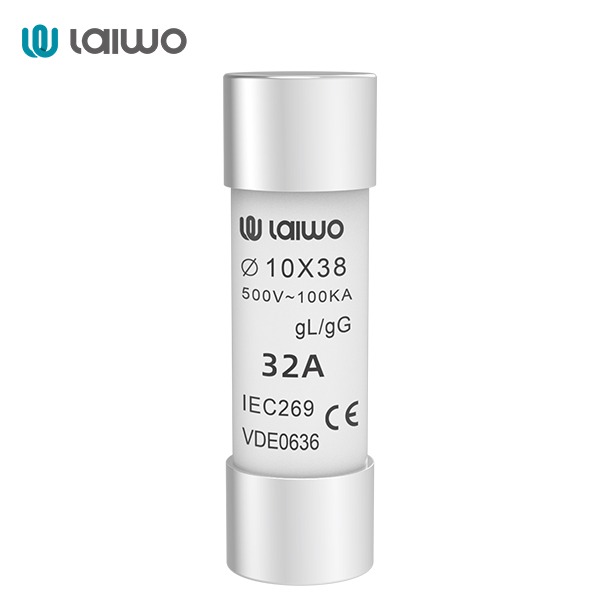

| FU32A10 | 32A 10.3*38 Fuse Link | gG/gL/aM/aR | 500V | 100KA |
