HRC white porcelain body
Copper/Brass contact cap
High grade copper fuse element
Rated voltage: AC400V
Rated current: From 2A to 25A (specifically 2A, 4A, 6A, 8A, 10A, 16A, 20A, 25A)
Application: For protecting circuits and equipment in 400V three-phase commercial and public buildings.
Fusing characteristics: gG/gL/aM/aR
Breaking capacity: 100KA-400V
Certificated with CE by EN60269-1
OEM Service

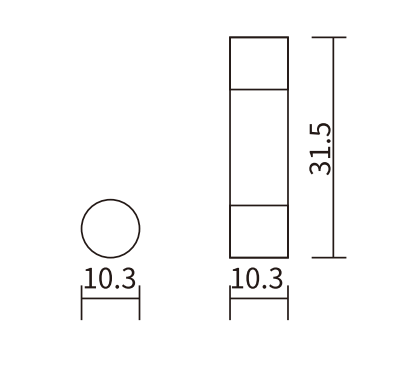

| Product model | Description | Functional class | U(v) | Breaking Capacity (KA) |
| FU2A10L | 2A 10.3*31.5 Fuse Link | gG/gL/aM/aR | 400V | 100KA |
| FU4A10L | 4A 10.3*31.5 Fuse Link | gG/gL/aM/aR | 400V | 100KA |
| FU6A10L | 6A 10.3*31.5 Fuse Link | gG/gL/aM/aR | 400V | 100KA |
| FU8A10L | 8A 10.3*31.5 Fuse Link | gG/gL/aM/aR | 400V | 100KA |
| FU10A10L | 10A 10.3*31.5 Fuse Link | gG/gL/aM/aR | 400V | 100KA |
| FU16A10L | 16A 10.3*31.5 Fuse Link | gG/gL/aM/aR | 400V | 100KA |
| FU20A10L | 20A 10.3*31.5 Fuse Link | gG/gL/aM/aR | 400V | 100KA |
| FU25A10L | 25A 10.3*31.5 Fuse Link | gG/gL/aM/aR | 400V | 100KA |
