Poles: 1P+N
Rated currents(In): 16,20,25,32,40A
Rated frequency: 50/60Hz
Rated impulse with stand voltage Uimp (1.2/50us): 4kV
Rated operated voltage: 230/240V∼
Insulation voltage(Ui): 500V
Rated breaking capacity: 6kA
Type: B
Tripping curves: B, C
Rated sensitivity current: 30mA
Max. terminal size for cable: 2.0Nm
Standards: IEC/EN61009-1, IEC/EN62423
Max terminal size for cable: 16mm2
Bidirectional
| Product model | Description | Box Qty |

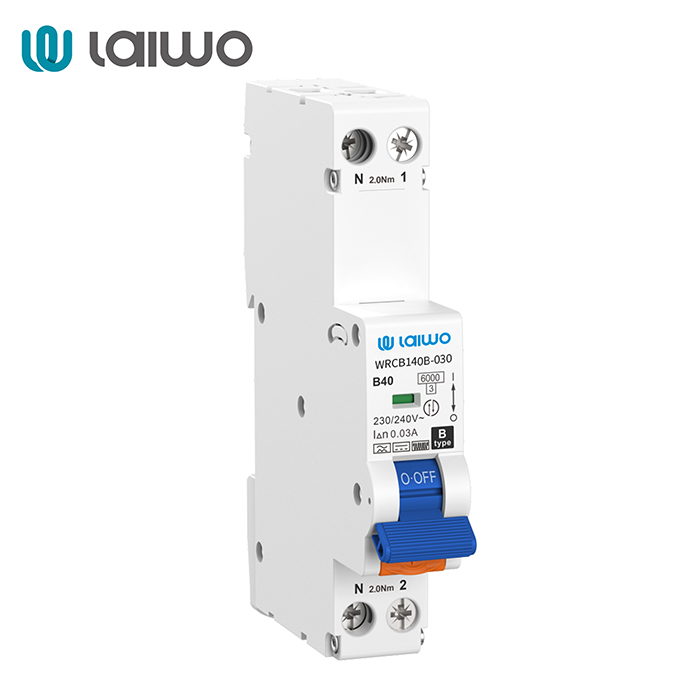

| WRCB116B-140B/030 | Single Module 16Amps-40Amps B Curve 30mA | 40 |
| WRCB116C-140C/030 | Single Module 16Amps-40Amps C Curve 30mA | 40 |
