A distribution board, commonly referred to as a DB, is an electrical panel that houses circuit breakers, fuses, and other protective devices. It receives electrical power from the main supply and distributes it to multiple circuits within a building. Distribution boxes, meanwhile, are enclosures that contain these distribution boards along with associated switching and protection equipment.
In residential applications, distribution boards typically manage lighting circuits, power outlets, and specialized circuits for appliances. Commercial installations require more sophisticated distribution systems to handle varied loads including HVAC systems, lighting controls, and office equipment. Industrial environments demand robust distribution solutions capable of managing heavy machinery, motor controls, and complex power distribution networks.
| Aspect | Surface Mounted | Flush Mounted |
|---|---|---|
| Installation Complexity | Simple, direct wall mounting | Complex, requires cavity preparation |
| Space Requirements | Protrudes from wall surface | Recessed, minimal visual impact |
| Accessibility | Excellent for maintenance | Good, but may require removal |
| Aesthetics | Functional appearance | Integrated, streamlined look |
| Cost | Lower installation cost | Higher due to preparation work |
The choice between surface mounted and flush mounted distribution boards significantly impacts installation methodology, space utilization, and overall system aesthetics. Understanding these differences is crucial for electrical professionals making informed recommendations to clients.
Surface mounted distribution boards are installed directly onto wall surfaces, protruding from the mounting surface. This installation method offers several advantages including simplified installation procedures, enhanced accessibility for maintenance, and easier cable management. The installation process requires minimal wall preparation, making it ideal for retrofit applications or situations where wall modification is restricted.
From a design perspective, surface mounted units typically feature robust enclosures designed to withstand environmental conditions. The external mounting allows for better heat dissipation and provides easy access to cable entry points. However, the protruding design may impact aesthetics in certain applications, particularly in premium residential or commercial environments where visual appeal is prioritized.
Flush mounted distribution boards are recessed into wall cavities, creating a streamlined appearance where only the front panel is visible. This installation method requires careful planning and coordination with building construction or renovation activities. Wall cavities must be prepared to accommodate the distribution board enclosure, including considerations for depth, cable routing, and access requirements.
The flush mounting approach offers superior aesthetics, particularly valued in residential applications and commercial environments where visual integration is important. However, installation complexity increases significantly, requiring precise measurements, proper cavity preparation, and careful consideration of wall structural integrity.
Different types of distribution equipment exhibit varying characteristics depending on their mounting configuration. Consumer units, MCB boxes, and circuit breaker boxes each present unique considerations when selecting between surface and flush mounting options.
Consumer units in residential applications often benefit from flush mounting to maintain interior design aesthetics. Modern homes increasingly feature open-plan designs where electrical installations must integrate seamlessly with architectural elements. Flush mounted consumer units provide this integration while maintaining full functionality and safety compliance.
Surface mounted consumer units remain popular in utility areas, garages, and commercial applications where accessibility trumps aesthetics. The protruding design facilitates easier cable management and provides superior ventilation for heat-sensitive components.
MCB distribution boxes accommodate various circuit breaker configurations, with mounting type affecting layout optimization. Surface mounted MCB boxes typically offer more flexibility in terminal arrangement and cable entry points. The external mounting allows for top, bottom, and side cable entries, providing installers with multiple routing options.
Flush mounted MCB boxes require more careful planning regarding cable entry points and terminal accessibility. The recessed installation may limit cable entry options, potentially requiring additional junction boxes or cable management solutions.
Circuit breaker boxes house the main switching and protection equipment, requiring careful consideration of heat dissipation and accessibility. Surface mounted configurations provide superior natural convection cooling and easy access for maintenance activities. The external mounting facilitates heat dissipation through all exposed surfaces.
Flush mounted circuit breaker boxes rely primarily on front-face heat dissipation, potentially requiring additional ventilation considerations in high-load applications. However, the integrated appearance often justifies these additional design requirements in premium installations.
The mounting methodology significantly influences long-term operational considerations including maintenance accessibility, visual integration, and system expandability. These factors often determine project success and client satisfaction over the system lifecycle.
Flush mounted distribution boards provide seamless integration with interior design schemes, particularly valuable in residential applications where electrical installations must complement architectural features. The recessed design minimizes visual impact while maintaining full functionality. This aesthetic advantage often justifies the additional installation complexity and cost in premium applications.
Surface mounted installations prioritize functionality over aesthetics but can be effectively integrated through careful planning and enclosure selection. Modern surface mounted distribution boards feature attractive finishes and compact designs that minimize visual impact while providing superior accessibility.
Surface mounted distribution boards excel in maintenance accessibility, providing unrestricted access to all components, terminals, and cable management areas. Maintenance technicians can easily access circuit breakers, wiring connections, and testing points without disturbing surrounding structural elements.
Flush mounted installations may present maintenance challenges, particularly when access requires partial removal of the distribution board or surrounding finish materials. However, well-designed flush mounted systems can provide adequate maintenance access through properly sized front panels and strategic component arrangement.
Professional Tip: When specifying flush mounted distribution boards, ensure adequate clearance around the installation for future maintenance activities. Consider specifying removable trim panels or access doors where full board removal might be required.
Future system modifications and expansions often favor surface mounted installations due to easier access to cable entry points and internal components. Adding circuits or upgrading protection devices typically requires less disruption to surrounding structures.
Flush mounted systems require more careful planning for future modifications, as changes may impact surrounding finish materials or require additional access preparation. However, modern modular distribution boards can accommodate many modifications without major structural changes.
.jpg)

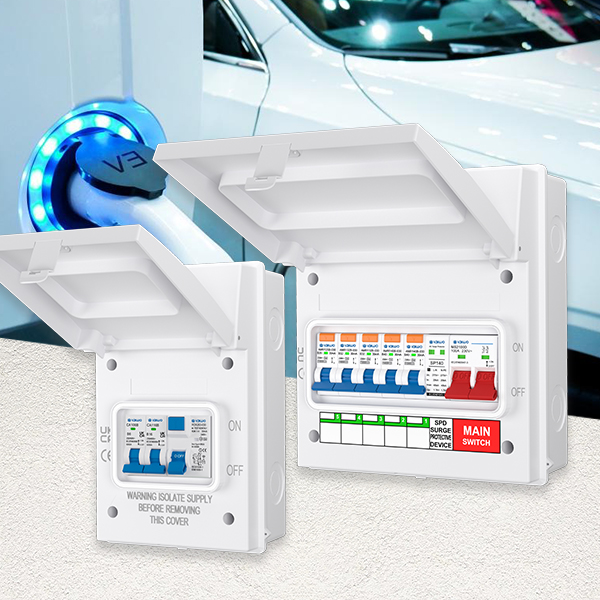

Electric vehicle charging infrastructure presents unique challenges and opportunities for distribution board selection and mounting methodology. EV distribution boards and consumer units require specialized consideration of safety, accessibility, and regulatory compliance.
EV charging installations demand robust distribution solutions capable of handling high-current loads while maintaining safety and reliability. EV distribution boards typically incorporate specialized protection devices, load monitoring capabilities, and communication interfaces for smart charging management.
Surface mounted EV distribution boards often provide advantages in commercial and industrial charging installations where accessibility for maintenance and monitoring is prioritized. The external mounting facilitates heat dissipation from high-current switching devices and provides easy access to communication interfaces.
EV charging infrastructure must comply with stringent safety standards including protection against earth faults, overcurrent conditions, and arc fault protection. The mounting methodology can significantly impact compliance with these safety requirements.
Flush mounted EV consumer units in residential applications must provide adequate ventilation and heat dissipation while maintaining the integrated appearance valued by homeowners. Special attention to cable management and earthing arrangements is essential for safe operation.
Commercial EV charging installations often benefit from surface mounted distribution boards that provide superior accessibility for monitoring and maintenance activities. The ability to easily access protection devices, monitoring equipment, and communication interfaces supports reliable charging network operation.
Modern EV charging systems integrate with building management systems, renewable energy sources, and grid management systems. This integration requires sophisticated distribution boards with communication capabilities and advanced protection features.
The mounting methodology impacts the integration of these advanced features, with surface mounted installations typically providing better access to communication interfaces and monitoring equipment. However, flush mounted installations can provide these capabilities with careful design and planning.
Learn More:
EV Consumer Units Fix Bottlenecks in EV Charging Business
From Charger to Car: Complete Protection with Our EV Consumer Units
The selection and mounting of protection devices including RCCBs, RCBOs, and MCBs varies significantly between industrial and commercial environments. Understanding these differences is crucial for optimal system design and performance.
Industrial environments typically require robust distribution systems capable of handling high fault currents, motor starting loads, and harsh environmental conditions. RCCB consumer units in industrial applications often benefit from surface mounting to provide maximum accessibility for maintenance and testing.
Industrial MCB distribution boards must accommodate frequent switching operations, high ambient temperatures, and potential exposure to dust, moisture, and vibration. Surface mounted installations typically provide better protection against these environmental factors while maintaining accessibility for maintenance activities.
Commercial environments often prioritize aesthetics alongside functionality, making flush mounted RCBO consumer units attractive for office buildings, retail spaces, and hospitality applications. The integrated appearance supports professional building aesthetics while providing comprehensive electrical protection.
Commercial MCB distribution boards must balance accessibility requirements with aesthetic considerations. Flush mounted installations work well in public areas and premium commercial spaces, while surface mounted configurations may be preferred in utility areas and maintenance spaces.
RCBO consumer units combine overcurrent and earth leakage protection in single devices, reducing space requirements and simplifying installation. The mounting methodology impacts heat dissipation and accessibility for these combined protection devices.
Surface mounted RCBO installations typically provide better heat dissipation and testing access, while flush mounted installations require careful consideration of ventilation and maintenance accessibility. The choice often depends on specific application requirements and environmental conditions.
Learn More: Why RCBOs Are a Must-Have in Modern Distribution Boards
Successful distribution board procurement requires understanding market dynamics, supplier capabilities, and quality standards. The mounting methodology significantly impacts procurement strategies and supplier selection criteria.
Distribution board wholesale markets offer significant cost advantages for larger projects, but require careful evaluation of quality standards and technical specifications. Surface mounted distribution boards typically offer more standardized configurations, potentially providing better wholesale pricing and availability.
Consumer unit wholesale procurement must consider mounting methodology impacts on inventory management and project scheduling. Flush mounted units often require longer lead times due to customization requirements and specialized enclosure preparation.
MCB distribution box suppliers must demonstrate capability in both surface and flush mounted configurations, providing technical support for mounting methodology selection and installation guidance. Reliable suppliers offer comprehensive product ranges covering both mounting options with consistent quality standards.
Electrical panel board procurement requires suppliers with strong technical support capabilities, particularly for complex installations involving mixed mounting methodologies. Suppliers should provide detailed installation guidance, mounting hardware, and compatibility information.
Industrial distribution equipment purchasing demands rigorous quality assurance programs covering manufacturing standards, testing procedures, and performance validation. The mounting methodology can impact quality requirements, with flush mounted installations often requiring tighter manufacturing tolerances.
Commercial consumer unit dealers must provide products meeting both technical performance standards and aesthetic requirements. This dual requirement often influences supplier selection and procurement strategies for projects involving flush mounted installations.
Procurement Best Practice: Establish relationships with electrical distribution panel suppliers who can provide both surface and flush mounted options from the same product family, ensuring consistency in quality, appearance, and technical specifications across mixed installations.
Industrial distribution equipment procurement presents unique challenges related to specification complexity, delivery scheduling, and long-term support requirements. Understanding these challenges helps develop effective procurement strategies and supplier relationships.
Industrial applications often require customized distribution solutions combining standard components with specialized features. Surface mounted installations typically accommodate customization more easily, while flush mounted solutions may require additional engineering and longer delivery times.
Working with reliable electrical distribution panel suppliers requires clear communication of technical requirements, environmental conditions, and mounting constraints. Suppliers must understand the implications of mounting methodology on system performance and long-term reliability.
Industrial projects often involve complex supply chain coordination with multiple suppliers providing different system components. Mounting methodology decisions made early in the project can significantly impact component availability and delivery scheduling.
Commercial consumer unit dealers must coordinate with construction schedules, particularly for flush mounted installations requiring wall preparation before electrical installation. This coordination requires strong project management capabilities and flexible delivery options.
Selecting the optimal mounting methodology requires systematic evaluation of technical requirements, aesthetic considerations, and long-term operational factors. The following guidance helps electrical professionals make informed decisions and develop effective procurement strategies.
Power distribution box selection should begin with comprehensive evaluation of application requirements including load characteristics, environmental conditions, accessibility needs, and aesthetic requirements. Surface mounted solutions typically provide advantages in maintenance accessibility and installation simplicity, while flush mounted installations excel in aesthetic integration and space utilization.
Consider future expansion requirements and maintenance accessibility when selecting mounting methodology. Industrial applications typically favor surface mounted installations for maximum accessibility, while commercial and residential applications may prioritize flush mounted solutions for aesthetic reasons.
Bulk purchasing strategies should consider the trade-offs between standardization and customization. Surface mounted distribution boards often provide better opportunities for standardization and bulk purchasing, while flush mounted installations may require more project-specific customization.
Develop relationships with suppliers capable of providing comprehensive solutions including mounting hardware, installation guidance, and technical support. This approach reduces procurement complexity and ensures compatibility across system components.
Establish partnerships with electrical distribution panel suppliers who demonstrate technical expertise, quality consistency, and reliable delivery performance. Evaluate suppliers based on their ability to support both mounting methodologies with consistent quality and technical specifications.
Regular supplier performance evaluation should include delivery reliability, quality consistency, technical support responsiveness, and pricing competitiveness. Maintain relationships with multiple qualified suppliers to ensure supply security and competitive pricing.
The choice between surface mounted and flush mounted distribution boxes significantly impacts system performance, aesthetics, maintenance accessibility, and long-term operational success. Surface mounted installations provide superior accessibility and installation simplicity, making them ideal for industrial applications and situations where maintenance access is prioritized. Flush mounted installations offer excellent aesthetic integration and space utilization, making them preferred for residential and commercial applications where visual appeal is important.
