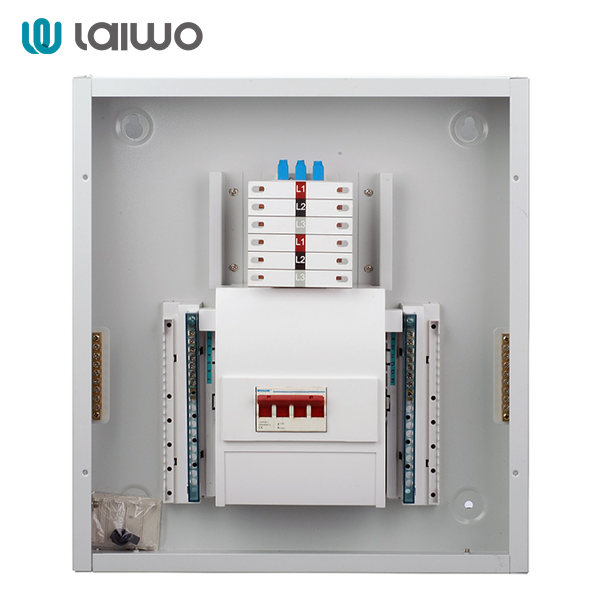

Rated Voltage AC380V/415V 50/60Hz
Maximum loading current to 125A
Fitted with 4Pole 125A Main Switch
Section Neutral & Earth terminals fitted both sides
Fully enclosed 125A busbar system
Complete shrouding for main incomer and terminals
Removable gland plate at top & bottom
Surface Mounted
Certificated with CE/UKCA by BSEN61439-3
OEM/ODM Service

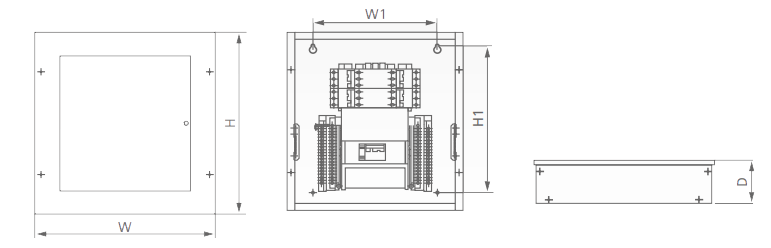

| Part No | Description | W(mm) | W1(mm) | H(mm) | H1(mm) | D(mm) |
| TPN04-125 | 4 Ways with 4 Pole 125A Main Switch Incomer | 465 | 321 | 506 | 409 | 105 |
| TPN06-125 | 6 Ways with 4 Pole 125A Main Switch Incomer | 465 | 321 | 560 | 463 | 105 |
| TPN08-125 | 8 Ways with 4 Pole 125A Main Switch Incomer | 465 | 321 | 614 | 517 | 105 |
| TPN10-125 | 10 Ways with 4 Pole 125A Main Switch Incomer | 465 | 321 | 668 | 571 | 105 |
| TPN12-125 | 12 Ways with 4 Pole 125A Main Switch Incomer | 465 | 321 | 722 | 625 | 105 |
| TPN14-125 | 14 Ways with 4 Pole 125A Main Switch Incomer | 465 | 321 | 776 | 679 | 105 |
| TPN16-125 | 16 Ways with 4 Pole 125A Main Switch Incomer | 465 | 321 | 830 | 733 | 105 |
| TPN18-125 | 18 Ways with 4 Pole 125A Main Switch Incomer | 465 | 321 | 884 | 787 | 105 |
| TPN24-125 | 24 Ways with 4 Pole 125A Main Switch Incomer | 465 | 321 | 1046 | 949 | 105 |
