Rated Voltage AC380V/415V 50/60Hz
Maximum loading current to 250A
Fitted with 3Pole 250A Main Switch
Section Neutral & Earth terminals fitted both sides
Fully enclosed 250A busbar system
Complete shrouding for main incomer and terminals
Removable gland plate at top & bottom
Surface Mounted
Certificated with CE/UKCA by BSEN61439-3
OEM/ODM Service
| Part No | Description | W(mm) | W1(mm) | H(mm) | H1(mm) | D(mm) |
| TPN04-250 | 4 Ways with 3 Pole 125A Main Switch Incomer | 456 | 321 | 506 | 109 | 120 |

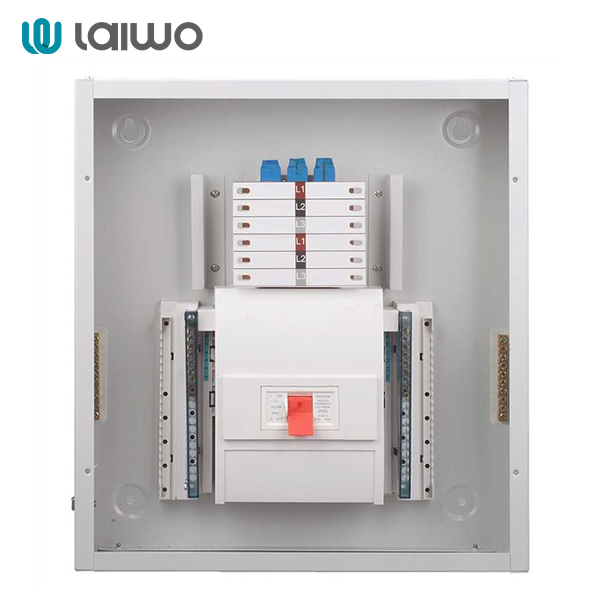

| TPN06-250 | 6 Ways with 3 Pole 125A Main Switch Incomer | 456 | 321 | 560 | 463 | 120 |
| TPN08-250 | 8 Ways with 3 Pole 125A Main Switch Incomer | 456 | 321 | 614 | 517 | 120 |
| TPN10-250 | 10 Ways with 3 Pole 125A Main Switch Incomer | 456 | 321 | 668 | 571 | 120 |
| TPN12-250 | 12 Ways with 3 Pole 125A Main Switch Incomer | 456 | 321 | 722 | 625 | 120 |
| TPN14-250 | 14 Ways with 3 Pole 125A Main Switch Incomer | 456 | 321 | 776 | 679 | 120 |
| TPN16-250 | 16 Ways with 3 Pole 125A Main Switch Incomer | 456 | 321 | 830 | 733 | 120 |
| TPN18-250 | 18 Ways with 3 Pole 125A Main Switch Incomer | 456 | 321 | 884 | 787 | 120 |
| TPN24-250 | 24Ways with 3 Pole 125A Main Switch Incomer | 456 | 321 | 1046 | 949 | 120 |
