Rated current In(A): 6,10,16,20,25,32,40.
Rated voltage Un: 240VAC.

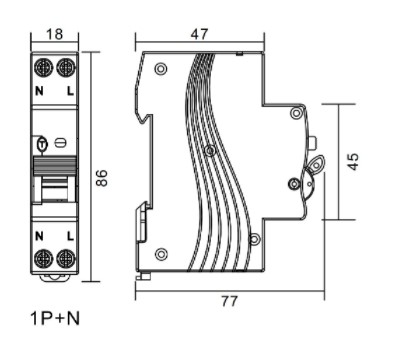

Poles: 1P+N.
Tripping curve: B, C.
Residual current operating characteristic: Type A.
Rated frequency: 50/60Hz.
Rated short-circuit breaking capacity Inc: 6kA.
Operating temperature: −25−+40∘C.
Contact position degree: IP20.
Rated residual operating current I△n(mA): 30,100mA.
Complies with BS EN61009-1.
Bidirectional.
Terminal capacity: 10mm2.
Type A.
| Product model | Description | Box Qty |
| WRCW206B-240B/030 | Single Module 2Pole 6Amps-40Amps B Curve 30mA | 50 |
| WRCW206B-240B/100 | Single Module 2Pole 6Amps-40Amps B Curve 100mA | 50 |
| WRCW206C-240C/030 | Single Module 2Pole 6Amps-40Amps C Curve 30mA | 50 |
| WRCW206C-240C/100 | Single Module 2Pole 6Amps-40Amps C Curve 100mA | 50 |
