Mounting Type: Rail Mounting
Max Rated Current: 32A
Rated Voltage: 660V AC
Compatible Fuse Size: 10.3x38mm
Number of Poles: 1-4 Poles (available in single to four-pole configurations)
Application: Commercial buildings, offices, and public facilities
Max Power Dissipation: 4W
Optional Feature: Available with or without indicator light (WSH-32X includes indicator light)
| Part No | Description | Fuse Size | Max Rated Current | U(v) | Number of Poles | Max Power Dissipation |

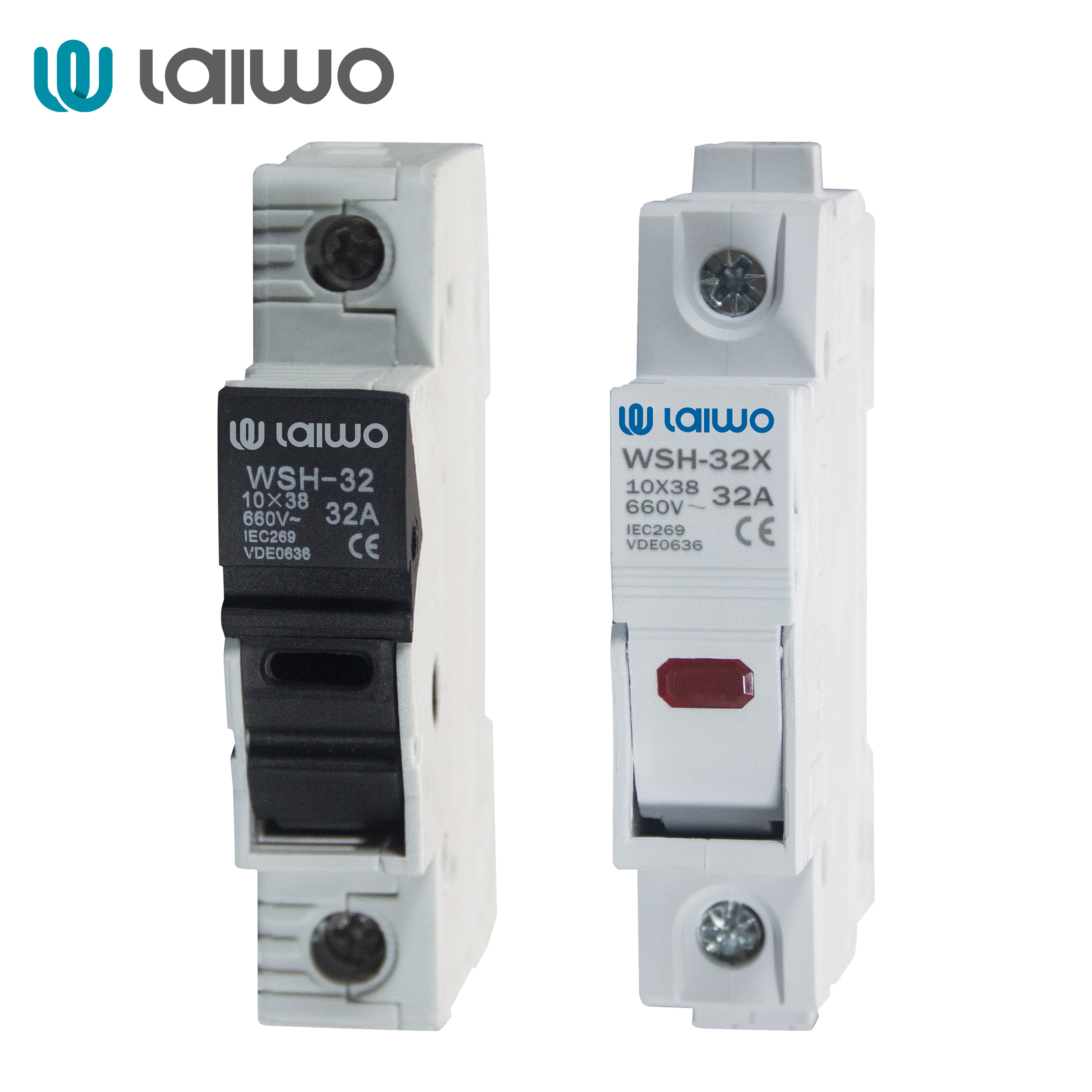

| WSH-32 | 32A Rail Mounting Fuse Holder | 10.3x38mm | 32A | 660V AC | 1P-4P | 4W |
| WSH-32X | 32A Rail Mounting Fuse Holder with Indicator Light | 10.3x38mm | 32A | 660V AC | 1P-4P | 4W |
