What is the difference between SPN and TPN distribution board

Power Distribution: Systematically delivers power to various rooms, outlets, and devices.

Protection: Built-in circuit breakers (MCB), residual current devices (RCD), etc., prevent overload, short circuits, and electric shocks, protecting your equipment and family.

Isolation: Allows you to cut off power to specific circuits for maintenance or troubleshooting without affecting the entire system.

Efficiency: Optimizes energy usage, reduces voltage fluctuations, and ensures stable operation of electrical appliances.

Electrical Configuration: Uses two wires – one live wire and one neutral wire, usually with an additional earth wire. The voltage is typically 120V or 230V AC.

Current Characteristics: Power is transmitted as a single waveform, and the voltage briefly drops to zero within each cycle, resulting in power transmission that is not continuously stable.

Typical Applications: Primarily used in residential homes, small commercial buildings, and apartments to power low-power demand devices such as lighting, fans, refrigerators, televisions, and computers.

Simple Installation: Low wiring complexity, relatively simple installation process.

Cost-Effective: Initial installation and maintenance costs are generally lower, and circuit breakers are also more economical.

Widely Available: SPN power is available in most homes.

Suitable for Small Loads: Fully meets the daily electricity needs of homes and small offices.

Limited Capacity: Not suitable for large or high-power consumption appliances and heavy equipment (usually not exceeding 5 horsepower).

Power Interruption: If there is a problem with the single-phase line, the entire power supply will be interrupted, leading to blackouts.

Lower Efficiency: Not highly efficient when handling high loads, and voltage fluctuations may occur.

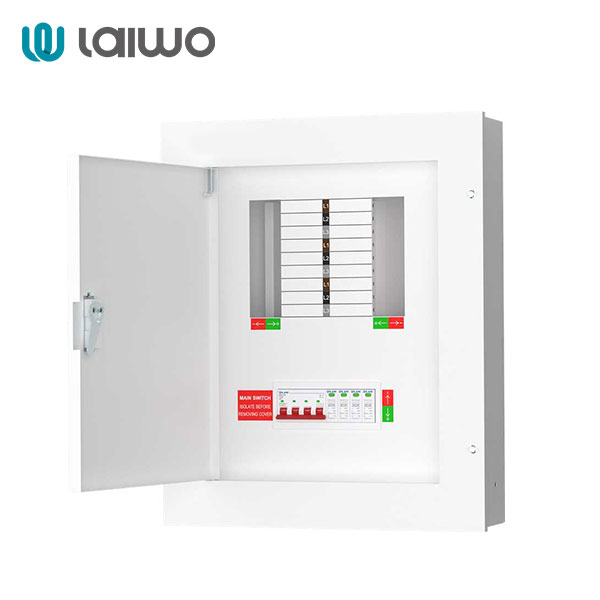

Electrical Configuration: Consists of three independent live wires (L1, L2, L3) and one neutral wire, with the three phases separated by 120 degrees. It can carry higher voltages, typically up to 415V AC.

Current Characteristics: Due to the 120-degree separation between the three phases, at least one phase is always active, ensuring continuous and balanced current flow, and the voltage never drops to zero.

Internal Configuration: Contains three poles (R, Y, B phases) and a neutral connection, designed to handle higher power loads, with each phase equipped with an MCB.

TPN vs. 4-Pole Breakers: It is important to understand that the neutral pole in a TPN distribution board is primarily for isolation and switching and typically does not provide overcurrent protection. In contrast, a "4-pole" breaker provides protection for all four poles, including the neutral. This can be a critical safety consideration in systems with high harmonic currents or significant imbalances.

High Power Capacity: Capable of handling significantly higher electrical demands and large, continuous loads.

Balanced Power Distribution: Distributes the load across three phases, reducing stress on single-phase circuits and resulting in smoother operation.

Higher Efficiency: Power is distributed evenly, leading to less energy loss during transmission, potentially lowering long-term energy costs.

Stable and Continuous Power Supply: Provides continuous current without voltage dips, which is crucial for equipment requiring uninterrupted power.

Power Interruption Resilience: Even if one phase experiences a problem, the other phases can usually continue to operate, preventing a complete power outage.

Wiring Cost Savings: Distributing the load across three wires may allow for the use of smaller wire sizes.

Complexity: Involves more wiring and a more complex system design.

Higher Initial Cost: Installation costs are higher due to additional wiring, components, and infrastructure.

High Insulation Cost: Due to higher voltages, insulation and safety measures need to be more robust.

Sensitivity to Overload: Although powerful, it can be sensitive to imbalances or overloads on a single phase.

Assess Load Requirements: Carefully consider your current and potential future electrical appliances and equipment. If you have large industrial machinery, elevators, large air conditioning systems, or plan to install high-power devices like EV chargers or heat pumps, TPN is almost the only choice.

Consider Reliability: For locations where power continuity is critical, such as hospitals, data centers, or factories, the inherent redundancy of a TPN system is essential.

Budget and Total Cost of Ownership: While SPN has lower upfront costs, TPN can be more economical in high-demand environments in the long run through energy efficiency and reduced downtime.

Future Expansion: Even if current demand is low, if there are plans for future expansion, installing TPN beforehand might be more cost-effective than upgrading later.

Regulatory Compliance: Regardless of the choice, ensure that the distribution board and its installation fully comply with national and international electrical standards (e.g., BS 7671 in the UK) to ensure safety and avoid legal issues.
