From bustling workshops and dedicated home offices to personal gyms and, increasingly, essential charging hubs for electric vehicles, these outbuildings now demand a robust and reliable electrical supply. At the heart of this safe electrical expansion lies the garage consumer unit, a crucial component that ensures an outbuilding's power supply is managed effectively and protected against potential hazards.
In this comprehensive article, we will delve into the technical details of garage consumer units, exploring why they were created, their primary functions, and their significance in modern garage applications. Whether you're a contractor seeking reliable supply solutions or exploring garage consumer unit distributorship opportunities, understanding these essential components is crucial for success in today's evolving electrical market.
.jpg)

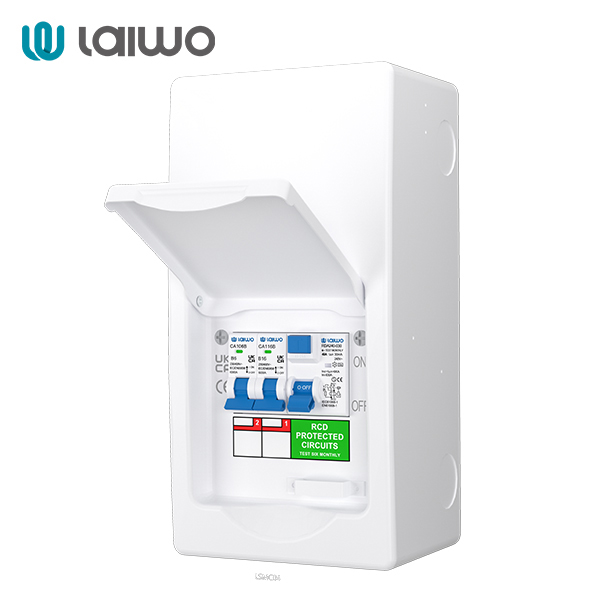

A garage consumer unit, frequently referred to as a garage fuse box, represents a specialized electrical distribution board specifically engineered to extend the electrical supply to detached outdoor buildings such as workshops, sheds, or garages. Its core function involves connecting the desired lighting and electrical outlets within the outbuilding directly to the main power supply, ensuring a seamless and safe flow of electricity.
While serving a similar overarching purpose, garage consumer units possess distinct characteristics when compared to their main household counterparts. They are typically smaller and more compact, designed specifically to cater to the generally fewer circuits required in an outbuilding. A main house unit may manage numerous circuits powering an entire dwelling, whereas a garage unit often oversees a more limited number, commonly between two and five load circuits. Functionally, a garage consumer unit acts as a "mini-version" of the main fuse box found in a home, serving as the localized control center for the garage's electrical circuits

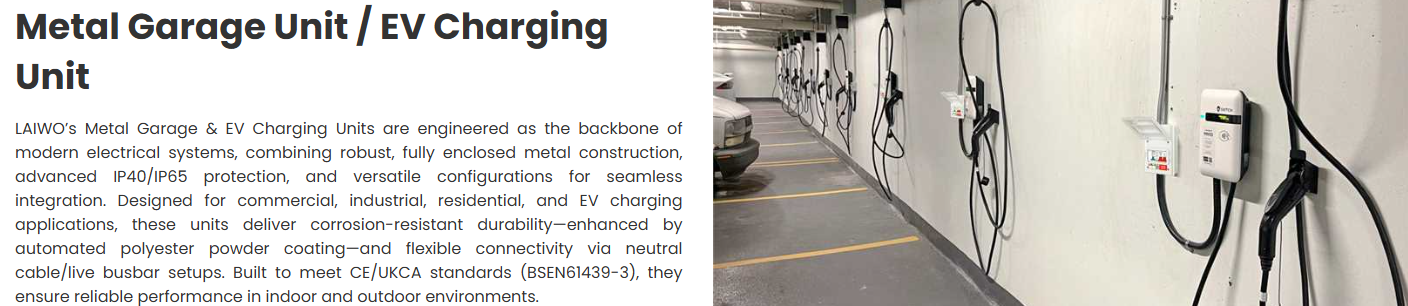

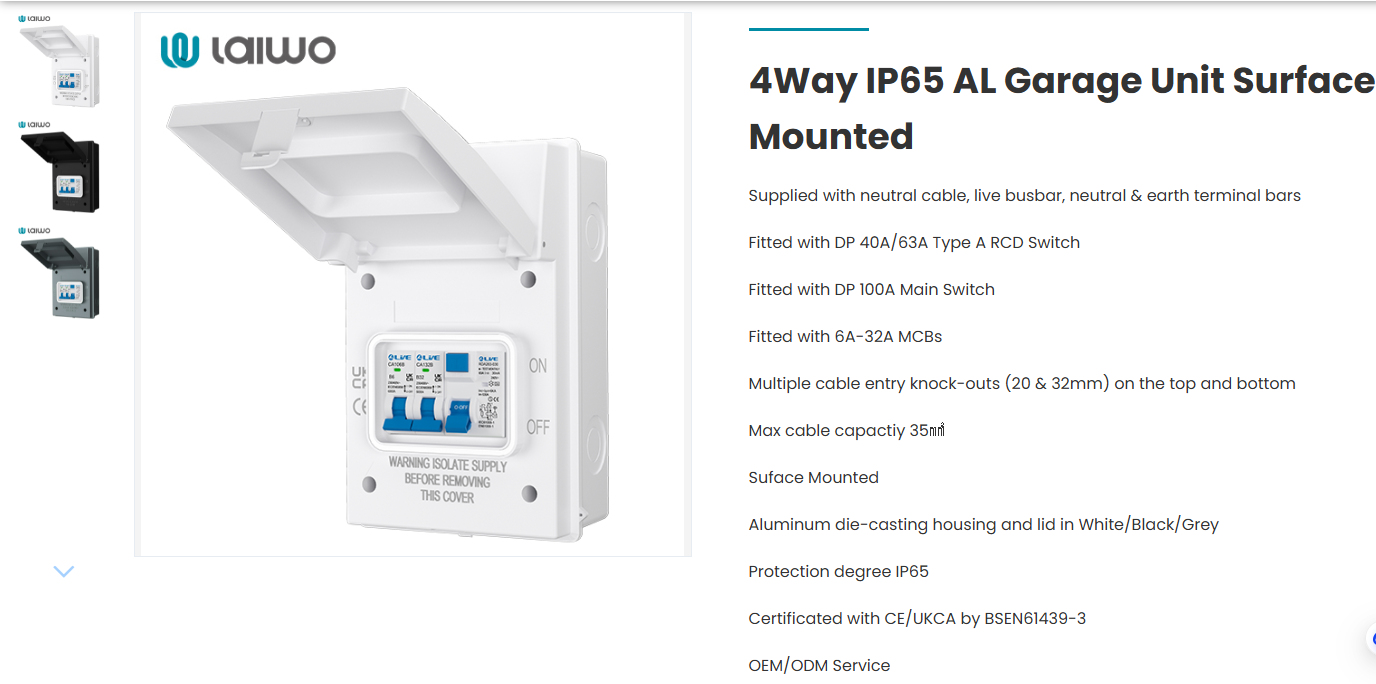

| Part No | Description |
| WSGU6340 | 4 Way c/w 63A 30mA RCD+B40A MCB |
| WSGU6350 | 4 Way c/w 63A 30mA RCD+B50A MCB |
| WSGU40616 | 4 Way c/w 63A 30mA RCD+B6A&B16A MCB |
| WSGU63616 | 4 Way c/w 63A 30mA RCD+B6A&B16A MCB |
| WSGU63620 | 4 Way c/w 63A 30mA RCD+B6A&B20A MCB |
| WSGU63632 | 4 Way c/w 63A 30mA RCD+B6A&B32A MCB |
| WSGUMS20 | 4 Way c/w Main Switch+B20A MCB |
| WSGUMS32 | 4 Way c/w Main Switch+B32A MCB |
| WSGUMS616 | 4 Way c/w Main Switch+B6A&B16A MCB |
| Part No | Description |
| WFGU6340 | 4 Way Flush c/w 63A 30mA RCD+B40A MCB |
| WFGU6350 | 4 Way Flush c/w 63A 30mA RCD+B50A MCB |
| WFGU40616 | 4 Way Flush c/w 40A 30mA RCD+B6A&B16A MCB |
| WFGU63616 | 4 Way Flush c/w 63A 30mA RCD+B6A&B16A MCB |
| WFGU63620 | 4 Way Flush c/w 40A 30mA RCD+B6A&B20A MCB |
| WFGU63632 | 4 Way Flush c/w 40A 30mA RCD+B6A&B32A MCB |
| WFGUMS20 | 4 Way Flush c/w 100A Main Switch +B20A MCB |
| WFGUMS32 | 4 Way Flush c/w 100A Main Switch +B32A MCB |
| WFGUMS616 | 4 Way Flush c/w 100A Main Switch +B6A&B16A MCB |
| Part No | Description |
| WMGU40616 | 4Way c/w DP 40A 30mA RCD + B6A/B16A MCB |
| WMGU40620 | 4Way c/w DP 40A 30mA RCD + B6A/B20A MCB |
| WMGUMS616 | 4Way c/w DP 100A Main Switch + B6A/B16A MCB |
| WMGUMS620 | 4Way c/w DP 100A Main Switch + B6A/B20A MCB |
| WMGUMS20 | 4Way c/w DP 100A Main Switch + B20A MCB |
| WMGUMS32 | 4Way c/w DP 100A Main Switch + B32A MCB |
| Part No | Description |
| WAGU40616 | 4Way c/w DP 40A 30mA RCD + B6A/B16A MCB |
| WAGU63620 | 4Way c/w DP 63A 30mA RCD + B6A/B20A MCB |
| WAGU63632 | 4Way c/w DP 63A 30mA RCD + B6A/B20A MCB |
| WAGUMS616 | 4Way c/w DP 100A Main Switch + B6A/B16A MCB |
| WAGUMS620 | 4Way c/w DP 100A Main Switch + B6A/B20A MCB |
| WAGUMS632 | 4Way c/w DP 100A Main Switch + B6A/B32A MCB |
| WAGUMS20 | 4Way c/w DP 100A Main Switch + B20A MCB |
| WAGUMS32 | 4Way c/w DP 100A Main Switch + B32A MCB |
GET A QUANTITY QUOTE: Contact our B2B sales team today for a customised volume purchasing solution for Garage Consumer Units.
DOWNLOAD TECHNICAL MANUALS: Visit our Download Centre for detailed product technical data sheets and installation guides.
BECOME OUR DISTRIBUTOR: Explore opportunities to expand your market with LAIWO Electrical.
PROJECT CONSULTANCY: If you have a large project requirement or need a customised solution, please contact our team of experts.
| Component Name | Primary Function | What it Protects Against |
|---|---|---|
| Enclosure | Houses and protects all components | Fire spread from internal faults |
| Main Switch | Master on/off for entire unit | Allows safe isolation for maintenance/emergencies |
| MCB | Protects individual circuits | Overloads, Short Circuits, Fire Risk |
| RCD | Monitors current balance | Electric Shock, Earth Leakage, Fire Risk |
| RCBO | Combines MCB and RCD functions | Electric Shock, Earth Leakage, Overloads, Short Circuits, Fire Risk |
| SPD | Diverts excess voltage | Voltage Spikes, Surges, Damage to sensitive equipment |
| Busbar | Electrically connects devices | Ensures efficient power distribution within the unit |
| Neutral Bar | Common connection for neutral wires | Organizes neutral connections, aids fault finding |
| Earth Bar | Common connection for earth wires | Organizes earth connections, provides safe path for fault currents |
Learn More: Distribution Boards: A Comprehensive Guide for Professionals and Consumers
Modern garages have transcended their traditional role of mere vehicle storage, transforming into dynamic, multi-functional spaces. They now commonly serve as bustling workshops for DIY enthusiasts, dedicated home offices, personal gyms, and, with the rapid adoption of electric vehicles, essential charging hubs. This functional expansion has brought a significant surge in electrical demands, with powerful equipment like saws, drills, welding gear, and EV chargers becoming ubiquitous.
The creation of these units was a pivotal step towards enhancing electrical safety and convenience in garage environments, making them indispensable in both residential and commercial settings.
Modern electrical standards, particularly in the UK, have become increasingly stringent to enhance overall safety. These regulations demand that all electrical circuits, especially those in potentially hazardous environments like garages, incorporate robust Residual Current Device (RCD) protection.
Installing a dedicated consumer unit in a garage prepares the electrical infrastructure for future upgrades and ensures it can safely support a wide range of evolving electrical needs. This includes accommodating new, more powerful tools, additional lighting, or the integration of advanced systems like EV chargers or solar panels.
The primary and fundamental function of a garage consumer unit is to safely and efficiently distribute electricity. It acts as the "nerve center" or "central hub" for the garage's electrical system, receiving power from the main supply and channeling it to various circuits. This process energizes lights, sockets, and other electrical devices within the outbuilding. This ensures that power is delivered evenly and safely to all connected loads.
Garage consumer units are equipped with sophisticated protective devices designed to mitigate various electrical hazards:
Overcurrent Protection (MCBs): Miniature Circuit Breakers (MCBs) function as safety guards, automatically cutting off electricity to a specific circuit if an overload (when too many electrical items draw excessive power) or a short circuit (an unintended direct connection between live and neutral conductors) is detected. This action prevents damage to appliances and wiring, and crucially, mitigates the risk of overheating and potential electrical fires.
Electric Shock Protection (RCDs/RCBOs): Residual Current Devices (RCDs) and Residual Current Breakers with Overcurrent Protection (RCBOs) are vital for protecting human life. They continuously monitor the electrical current, and if an imbalance (earth leakage) is detected—indicating that electricity is flowing where it shouldn't, such as through a person touching a live wire or a damaged cable—they rapidly disconnect the power supply. This immediate action prevents electric shocks. RCBOs offer the added benefit of isolating only the faulty circuit, preventing a complete power outage to the entire garage.

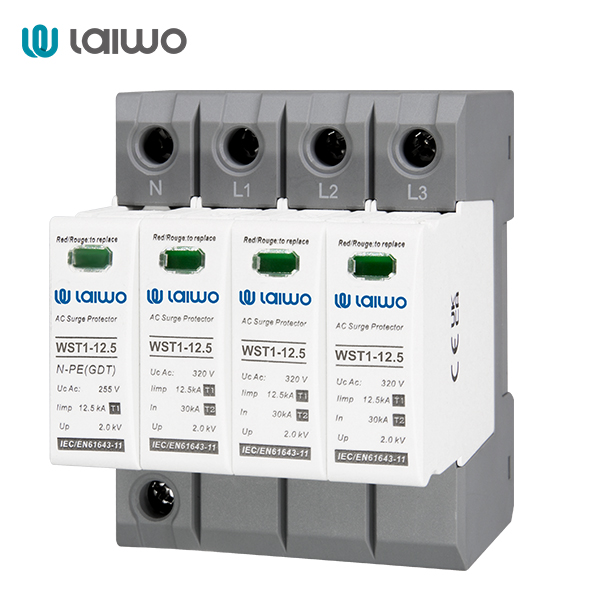

Surge Protection (SPDs): Modern consumer units often incorporate Surge Protection Devices (SPDs). These devices shield the electrical system and sensitive electronic equipment from dangerous voltage spikes. Such spikes can be caused by external factors like lightning strikes or sudden fluctuations in the main power grid. SPDs are crucial for safeguarding expensive tools, electronics, and even EV chargers commonly found in modern garages.
Learn More:
MCBs Guide: Types, Functions & Electrical Safety Tips
Understanding the difference between MCB RCCB and RCBO
What is the difference between a circuit breaker and a circuit protector?
The main switch within the consumer unit provides a centralized control point, allowing for the quick and complete disconnection of the entire power supply to the garage. This is an essential safety feature for performing repairs, conducting routine maintenance, or in the event of an electrical emergency. Furthermore, individual circuit breakers (MCBs/RCBOs) enable the isolation of specific circuits. This means it is possible to safely work on or troubleshoot one part of the electrical system (e.g., a faulty socket) without affecting the power supply to other areas or devices in the garage.
Another critical feature of garage consumer units is earth fault protection. Many units incorporate Earth Leakage Circuit Breakers (ELCBs) or Residual Current Devices (RCDs), which detect any leakage of current to the ground. In case of an earth fault, such as when a person accidentally contacts a live wire, the ELCB or RCD instantly shuts off the power, preventing potential electrocution. This feature is especially important in garages, where the risk of exposure to live wires is higher.
Modern garages are increasingly sophisticated and multi-functional spaces, housing powerful equipment like saws, drills, welding gear, and often serving as dedicated home offices or workshops. These devices draw a significant amount of power, which a standard household circuit may not be designed to handle safely without risk of overload. A dedicated garage consumer unit ensures a sufficient, stable, and safely distributed power supply for these varied and often high-demand applications, preventing strain on the main household electrical system.
The rapid rise of electric vehicles (EVs) has made garage consumer units even more critical. EV chargers draw a substantial and continuous amount of power, necessitating dedicated circuits and enhanced protection to operate safely and efficiently. Garage/EV charger compatible consumer units are specifically designed to accommodate these unique requirements. They typically include a dedicated circuit for the EV charger, ensuring optimal performance without overloading other circuits, and often come equipped with Surge Protection Devices (SPDs) to safeguard sensitive electronics from voltage spikes.
Learn More: EV Charger Consumer Unit Guide
The installation of garage consumer units is deeply intertwined with a robust framework of UK electrical safety regulations:
Adherence to UK Wiring Regulations (BS 7671): All electrical installations in the UK, including those in garages, must comply with the national standard for electrical safety, BS 7671 (The IET Wiring Regulations).
Mandatory Metal Enclosures: As per the 17th and 18th Editions of BS 7671, all new garage consumer units must be housed in metal enclosures.
A modern garage consumer unit is designed with future expansion in mind. It provides the flexibility and capacity to easily accommodate new electrical additions and upgrades as technology evolves, from installing new smart devices and lighting systems to integrating more powerful tools or additional EV charging points.
Position the unit near the garage entrance for easy access, avoiding damp areas.
Secure it to a sturdy surface using screws, ensuring it’s level.
Feed the supply cable (from the main house fuse box) into the unit via a gland or knockout.
Strip the cable sheath to expose live (brown), neutral (blue), and earth (green/yellow) wires.
Connect them to the main switch’s terminals:
Live (L): Brown wire to the top terminal.
Neutral (N): Blue wire to the adjacent terminal.
Earth (PE): Green/yellow wire to the earth bar.
Pro Tip: For garage distribution boards with RCDs, ensure the supply cable is rated for the total load.
Slot individual MCBs (Miniature Circuit Breakers) or RCBOs into the DIN rail.
Label each breaker (e.g., "Lighting," "Sockets," "EV Charger").

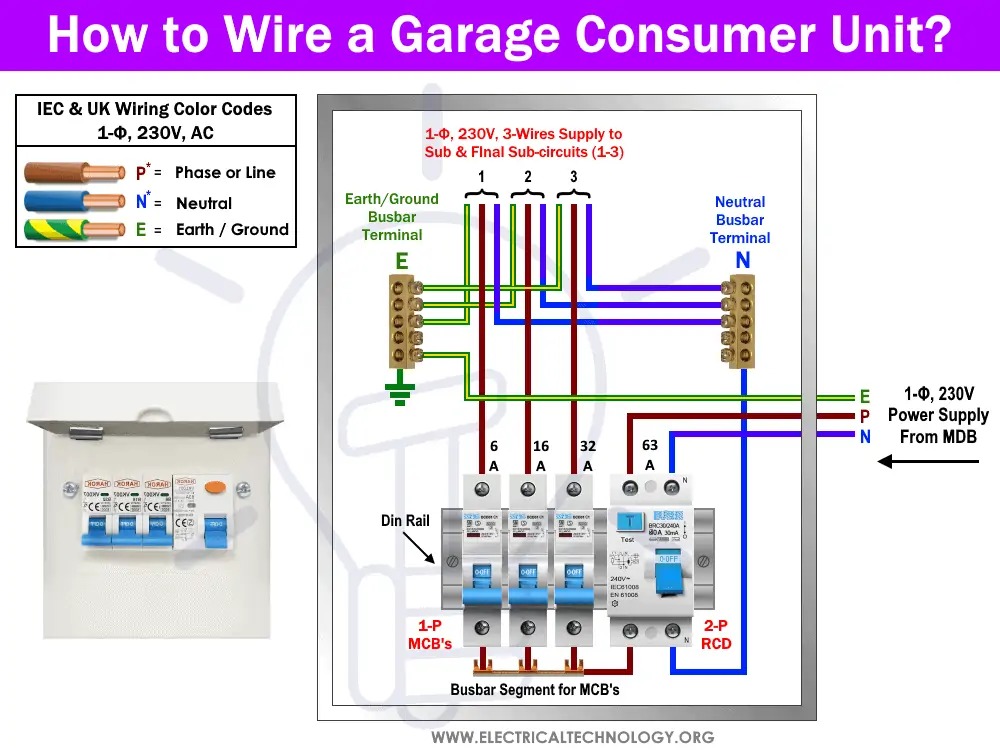

Double-check connections against your consumer unit wiring diagram.
Restore power and test each circuit with a multimeter.
Learn More: How to Wire a Garage Consumer Unit: A Comprehensive Guide
The modern garage consumer unit is far more than a simple fuse box; it is an indispensable and sophisticated component for ensuring the safety, efficiency, and adaptability of an outbuilding's electrical system. From powering essential lighting and tools to facilitating the charging of electric vehicles, these units are meticulously designed to meet the evolving demands of contemporary garages while providing crucial, layered protection against electrical faults, shocks, and surges.
