Supplied with neutral cable, live busbar, neutral & earth terminal bars
Fitted with DP 40A/63A Type A RCD Switch
Fitted with DP 100A Main Switch
Fitted with 6A-32A MCBs
Multiple cable entry knock-outs (20 & 32mm) on the top and bottom
Max cable capactiy 35㎟
Suface Mounted

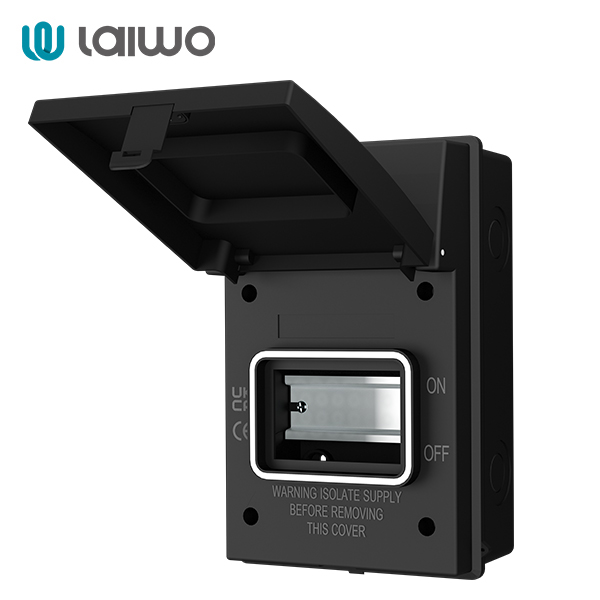

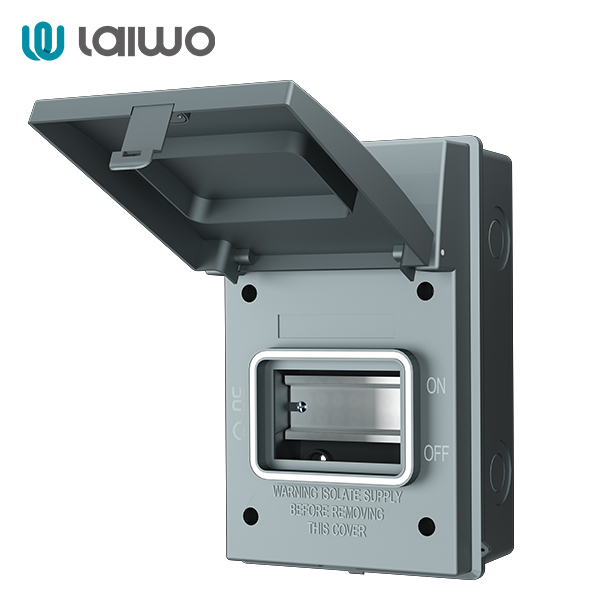

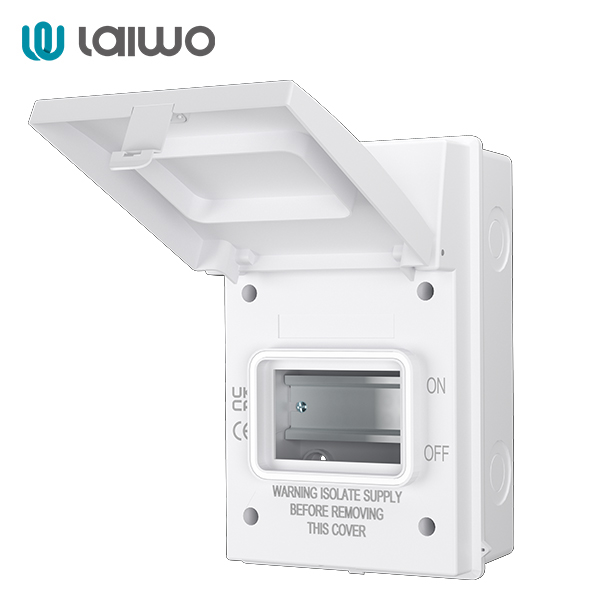

Aluminum die-casting housing and lid in White/Black/Grey
Protection degree IP65
Certificated with CE/UKCA by BSEN61439-3
OEM/ODM Service
| Part No | Description |
| WAGU40616 | 4Way c/w DP 40A 30mA RCD + B6A/B16A MCB |
| WAGU63620 | 4Way c/w DP 63A 30mA RCD + B6A/B20A MCB |
| WAGU63632 | 4Way c/w DP 63A 30mA RCD + B6A/B20A MCB |
| WAGUMS616 | 4Way c/w DP 100A Main Switch + B6A/B16A MCB |
| WAGUMS620 | 4Way c/w DP 100A Main Switch + B6A/B20A MCB |
| WAGUMS632 | 4Way c/w DP 100A Main Switch + B6A/B32A MCB |
| WAGUMS20 | 4Way c/w DP 100A Main Switch + B20A MCB |
| WAGUMS32 | 4Way c/w DP 100A Main Switch + B32A MCB |
High Protection Performance:
As an IP65-rated fusebox consumer unit, it features an aluminum die-casting housing and lid, providing comprehensive dust-tight protection and resistance to low-pressure water jets. This effectively copes with dust, humidity, and other environmental factors in garages, ensuring stable operation of the equipment, which aligns with the core protection requirements of an IP65 garage consumer unit.
Safety Compliance with Complete Configurations:
Equipped with a DP 100A Main Switch, 40A/63A Type A RCDs, and 6A-32A MCBs, forming a multi-layer safety protection mechanism. It is certified with CE/UKCA and complies with BSEN61439-3 standards, capable of reliably cutting off power in case of risks such as circuit overload or leakage, thus ensuring electrical safety.
Flexible Installation with Strong Adaptability:
Adopting a surface-mounted design, it has multiple 20mm and 32mm cable entry knock-outs on the top and bottom, with a maximum cable capacity of 35mm2, meeting the access needs of cables of different specifications. Meanwhile, the aluminum housing is available in white/black/grey.
