Supplied with neutral cable, live busbar, neutral & earth terminal bars
Fitted with DP 40A/63A Type A RCD Switch
Fitted with DP 100A Main Switch
Fitted with 6A-32A MCBs

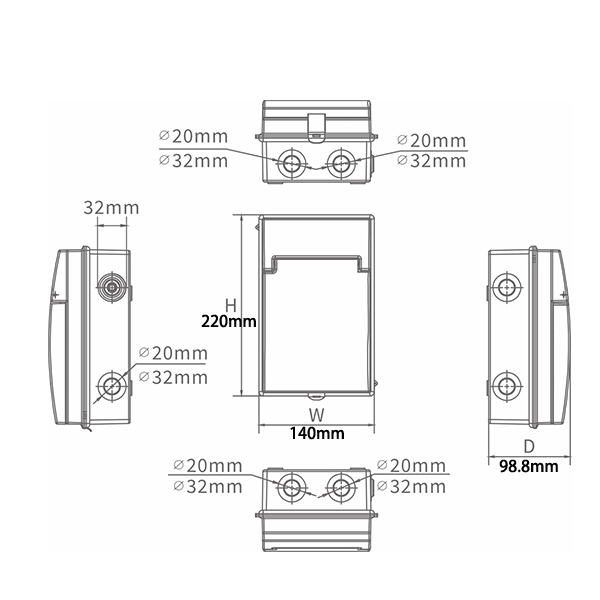

Multiple cable entry knock-outs (20 & 32mm) on the top and bottom
Max cable capactiy 35㎟
Suface Mounted
Aluminum die-casting housing and lid in White/Black/Grey
Protection degree IP65
Certificated with CE/UKCA by BSEN61439-3
OEM/ODM Service
| Part No | Description |
| WAGU40616 | 4Way c/w DP 40A 30mA RCD + B6A/B16A MCB |
| WAGU63620 | 4Way c/w DP 63A 30mA RCD + B6A/B20A MCB |
| WAGU63632 | 4Way c/w DP 63A 30mA RCD + B6A/B20A MCB |
| WAGUMS616 | 4Way c/w DP 100A Main Switch + B6A/B16A MCB |
| WAGUMS620 | 4Way c/w DP 100A Main Switch + B6A/B20A MCB |
| WAGUMS632 | 4Way c/w DP 100A Main Switch + B6A/B32A MCB |
| WAGUMS20 | 4Way c/w DP 100A Main Switch + B20A MCB |
| WAGUMS32 | 4Way c/w DP 100A Main Switch + B32A MCB |
