Supplied with neutral cable, live busbar, neutral & earth terminal bars
Fitted with DP 16A-40A Type A RCBO
Fitted with 20/40KA T2/1P+N Surge Protective Device
Fitted with DP 100A Main Switch
Fitted with 6A-40A Double line switched/Type A/1P+N RCBO

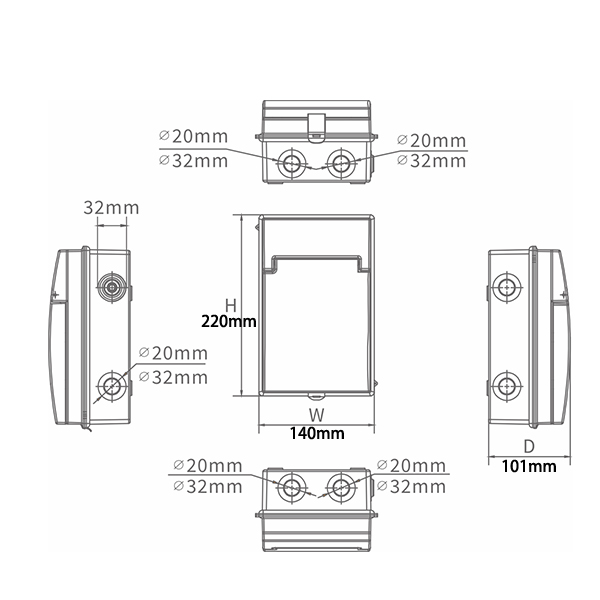

Multiple cable entry knock-outs (20 & 32mm) on the top and bottom
Max cable capactiy 35㎟
Suface Mounted

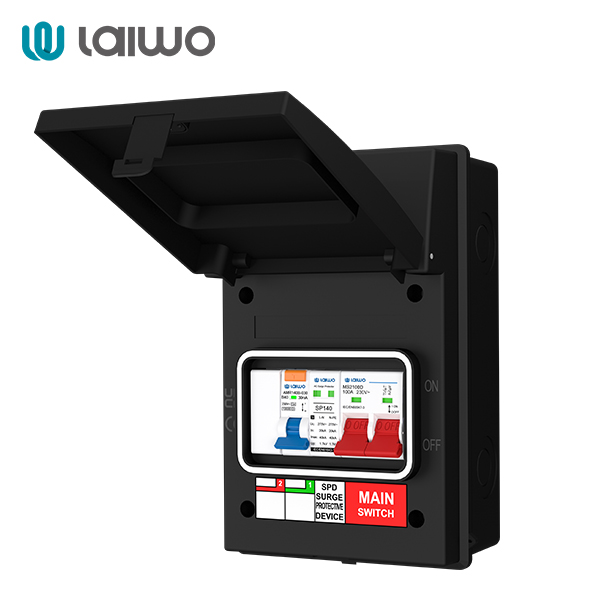

Aluminum die-casting housing and lid in White/Black/Grey
Protection degree IP65
Certificated with CE/UKCA by BSEN61439-3
OEM/ODM Service
| Part No | Description |
| WAVU05-SR16 | 5Way c/w DP 16A RCBO + 20/40KA T2/1P+N SPD (2 usble way) |
| WAVU05-SR20 | 5Way c/w DP 20A RCBO + 20/40KA T2/1P+N SPD (2 usble way) |
| WAVU05-SR32 | 5Way c/w DP 32A RCBO + 20/40KA T2/1P+N SPD (2 usble way) |
| WAVU05-SR40 | 5Way c/w DP 40A RCBO + 20/40KA T2/1P+N SPD (2 usble way) |
| WAVU05-MSR16 | 5Way c/w DP 100A Main Switch + 20/40kA T2/1P+N SPD + 16A 1P+N RCBO(1usble way) |
| WAVU05-MSR20 | 5Way c/w DP 100A Main Switch + 20/40kA T2/1P+N SPD + 20A 1P+N RCBO(1usble way) |
| WAVU05-MSR32 | 5Way c/w DP 100A Main Switch + 20/40kA T2/1P+N SPD + 32A 1P+N RCBO(1usble way) |
| WAVU05-MSR40 | 5Way c/w DP 100A Main Switch + 20/40kA T2/1P+N SPD + 40A 1P+N RCBO(1usble way) |
