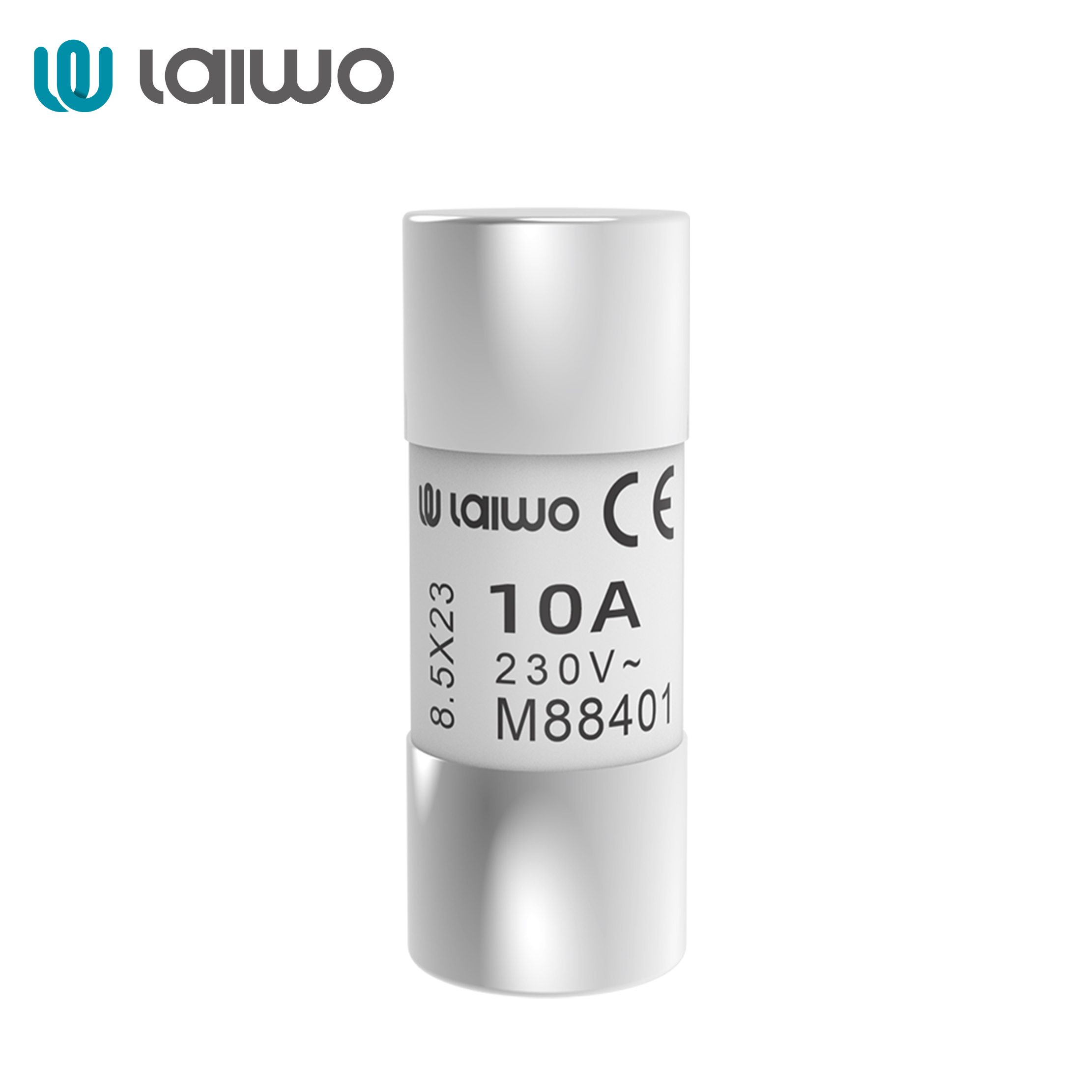

HRC white porcelain body
Copper/Brass contact cap
High grade copper fuse element
Rated voltage: AC230V
Rated current: From 2A to 16A (specifically 2A, 4A, 6A, 8A, 10A, 16A)
Application: Electrical distribution panel, switchgear, and various types of machinery requiring internal circuit protection.
Fusing characteristics: gG/gL/aM/aR
Breaking capacity: 100KA-230V
Certificated with CE by EN60269-1
OEM Service
| Product model | Description | Functional class | U(v) | Breaking Capacity (KA) |

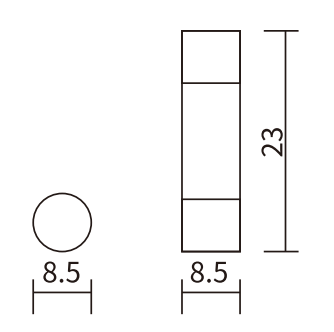

| FU2A08 | 2A 8.5*23 Fuse Link | gG/gL/aM/aR | 230V | 100KA |
| FU4A08 | 4A 8.5*23 Fuse Link | gG/gL/aM/aR | 230V | 100KA |
| FU6A08 | 6A 8.5*23 Fuse Link | gG/gL/aM/aR | 230V | 100KA |
| FU8A08 | 8A 8.5*23 Fuse Link | gG/gL/aM/aR | 230V | 100KA |
| FU10A08 | 10A 8.5*23 Fuse Link | gG/gL/aM/aR | 230V | 100KA |
| FU16A08 | 16A 8.5*23 Fuse Link | gG/gL/aM/aR | 230V | 100KA |
