Breaking Capacity: 120KA
Rated Voltage: 500/600V (AC)
Fusing characteristics gG/gL/gM/aM/aR
Certificated with CE by EN60269-1
OEM Service

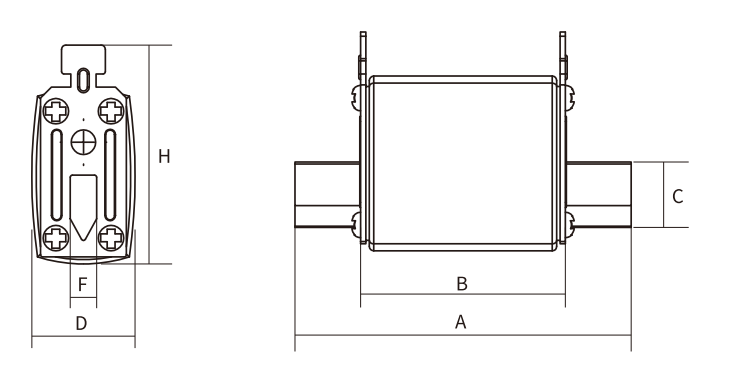

| Part No | Description | Max Rated Current | U(v) | A | B | C | D | H | F |
| NT00C | 4A-100A Fuse Link | 120KA | 500/600V | 78 | 49 | 15 | 21 | 47.5 | 6 |
| NT00 | 4A-160A Fuse Link | 120KA | 500/600V | 78 | 49 | 15 | 29 | 57 | 6 |
| NT0 | 16A-160A Fuse Link | 120KA | 500/600V | 124.5 | 65 | 15 | 29 | 56 | 6 |
| NT1 | 25A-250A Fuse Link | 120KA | 500/600V | 135 | 67 | 20 | 48 | 62 | 6 |
| NT2 | 125A-400A Fuse Link | 120KA | 500/600V | 150 | 67 | 25 | 58 | 71 | 6 |
| NT3 | 250A-630A Fuse Link | 120KA | 500/600V | 150 | 67 | 32 | 66.5 | 85 | 6 |
| NT4 | 800A-1250A Fuse Link | 120KA | 500/600V | 200 | 80 | 51 | 85 | 112 | 8 |
