Name: WCP Miniature Circuit Breakers plug in MCB
Brand: LAIWO
SKU: 00088
Rating: 4.1 (94 reviews)

1Pole White WCP Miniature Circuit Breaker-wosomelec

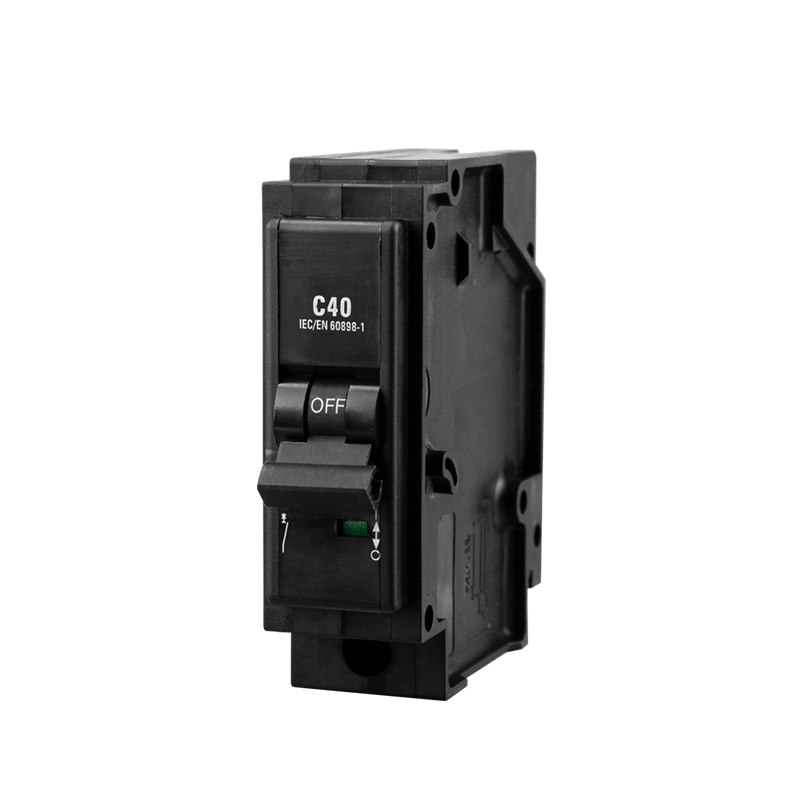

1Pole Black WCP Miniature Circuit Breaker-wosomelec

2Pole White WCP Miniature Circuit Breaker-wosomelec

2Pole Black WCP Miniature Circuit Breaker-wosomelec

3Pole White WCP Miniature Circuit Breaker-wosomelec

3Pole Black WCP Miniature Circuit Breaker-wosomelec

WCP Miniature Circuit Breakers plug in MCB

Rated current In (A): 6,10,16,20,25,32,40

Poles: 1P,2P,3P,4P

Rated voltage Ue: 230/400V

Rated frequency: 50/60Hz

Insulation voltage Ui: 500V

Rated breaking capacity(A): 6KA

Rated impulse withstand voltage(1.2/50) Uimp(V): 4000

Delectric test voltage at ind.Frq for 1 min (KV): 2

Ambient temperature(with daily average≤35℃:-5~+40)

Thermo-magnetic release characteristic: B,C,D

Electrical life:8000

Contact position degree: Ip20

Storage tmeperature((℃):-25~+70)

Reference tmeperature for seting of tmermal element(℃):30

Brand: Laiwo

Email: sales@woson.cn

Telephone: +86-15067706272

Whatsapp: +86-15067706272

INQUIRY NOW Download

Product Description Technical Parameters Advantages Related Products

Product Description

The WCP Push-in Miniature Circuit Breaker (MCB) is a versatile electrical protection device engineered to deliver high-performance safety for lighting, motor control, and power distribution systems. Featuring a compact push-in design and thermo-magnetic release technology (B/C/D curves), this MCB ensures rapid response to overloads and short circuits, safeguarding equipment across residential, commercial, and industrial installations.

Miniature Circuit Breaker ABC Curves-wosomelec

WCP Miniature Circuit Breaker Dimensions-wosomelec

Technical Parameters

Part No	Description	Box Qty
WCP106B-163B	1Pole 6Amps~63Amps B Curve 6KA MCB	12
WCP206B-263B	2 Pole 6Amps~63Amps B Curve 6KA MCB	6
WCP306B-363B	3 Pole 6Amps~63Amps B Curve 6KA MCB	4
WCP406B-463B	4 Pole 6Amps~63Amps B Curve 6KA MCB	3
WCP106C-163C	1Pole 6Amps~63Amps C Curve 6KA MCB	12
WCP206C-263C	2Pole 6Amps~63Amps C Curve 6KA MCB	6
WCP306C-363C	3Pole 6Amps~63Amps C Curve 6KA MCB	4
WCP406C-463C	4Pole 6Amps~63Amps C Curve 6KA MCB

Product Features

Reliable Overload & Short-Circuit Protection:The WCP Push-in MCB safeguards electrical systems with thermo-magnetic release technology (B/C/D curves), offering precision protection against overloads and short circuits. Its 6kA breaking capacity ensures rapid fault interruption, minimizing equipment damage and downtime in lighting, motor control, and power distribution networks.
Space-Saving Push-in Design:Engineered with a compact modular structure and IP20-rated enclosure, this MCB optimizes panel space while resisting dust ingress. Its lightweight yet durable build supports seamless integration into modern electrical setups, even in confined spaces. The push-in terminal design simplifies installation, reducing labor time and costs.
High-Performance Durability:Built to endure demanding conditions, the WCP MCB operates reliably across ambient temperatures -5°C to +40℃ (storage: -25°C to +70℃) and withstands 8,000 electrical operations. Fire-resistant materials and 4kV impulse voltage resistance ensure longevity in residential, commercial, and industrial environments.
Compliance & Versatility:Compatible with 230/400V, 50/60Hz systems and certified for 2kV dielectric strength, this MCB meets rigorous safety standards. Its multi-pole configurations (1P, 2P, 3P, 4P) and 6–40A adjustable current range adapt to diverse applications, from machinery control to grid infrastructure.
Certified Safety Assurance:Designed with 30°C thermal calibration and tested for stability under extreme conditions, the WCP MCB aligns with global electrical safety benchmarks, ensuring trusted performance in critical installations.
