HRC white porcelain body
Fusing characteristics gG/gL
Breaking capacity 100KA-500V
Rated Current: Available in a range from 2A to 25A

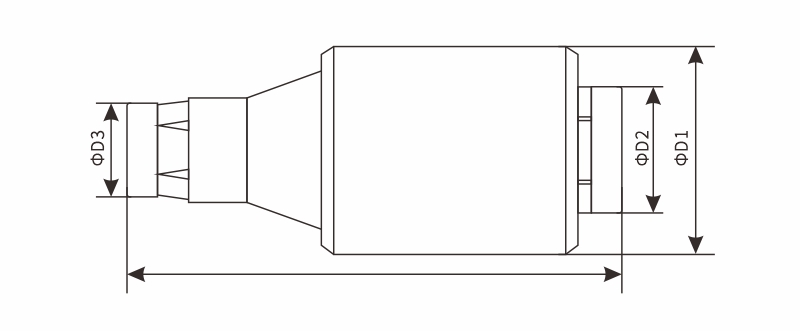

Dimensions: Consistent dimensions for all current ratings
Applications: Lighting, appliances, and control circuits in homes and light industrial settings
Certificated with CE by EN60269-1
OEM Service
| Model | Description | U(V) | Max Rated Current | Dimension Size(mm) |
| FU2ADII | 2A DII/E27 Bottle Fuse Link | 500V | 100KA | 50/22/13/6 |

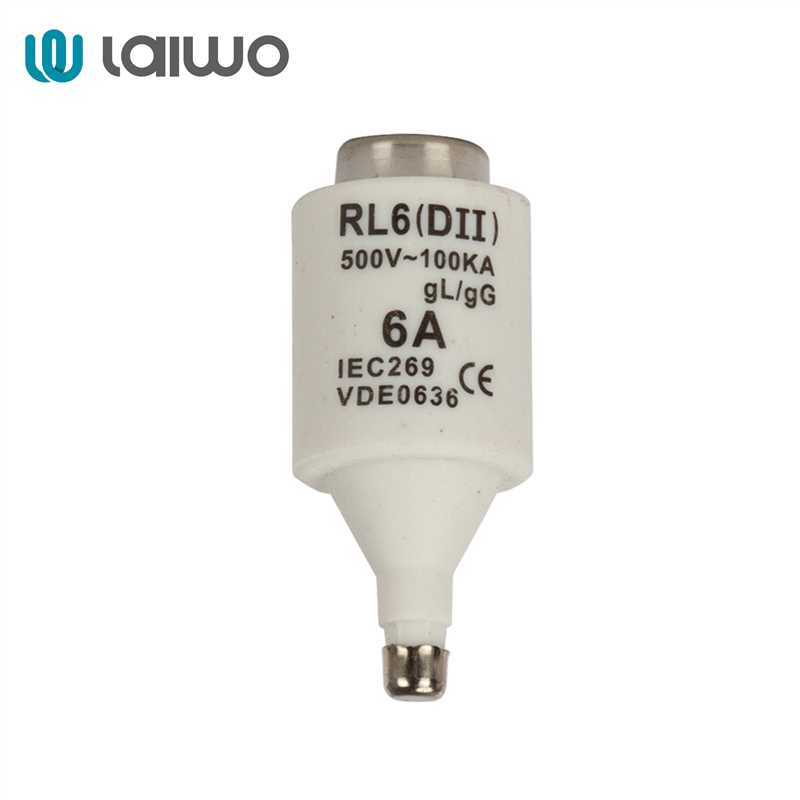

| FU4ADII | 4A DII/E27 Bottle Fuse Link | 500V | 100KA | 50/22/13/6 |
| FU6ADII | 6A DII/E27 Bottle Fuse Link | 500V | 100KA | 50/22/13/6 |
| FU8ADII | 8A DII/E27 Bottle Fuse Link | 500V | 100KA | 50/22/13/8 |
| FU10ADII | 10A DII/E27 Bottle Fuse Link | 500V | 100KA | 50/22/13/8 |
| FU16ADII | 16A DII/E27 Bottle Fuse Link | 500V | 100KA | 50/22/13/10 |
| FU20ADII | 20A DII/E27 Bottle Fuse Link | 500V | 100KA | 50/22/13/12 |
| FU25ADII | 25A DII/E27 Bottle Fuse Link | 500V | 100KA | 50/22/13/14 |
