Rated Voltage AC240V 50/60Hz
Maximum loading current to 100A
Suit to fit with Plug-in MCB only
Fitted with DP 100A Main Switch.
Fitted with DP 100A RCD Switch.
Suface Mounted
Protection degree IP40
Certificated with CE/UKCA by BSEN61439-3
OEM/ODM Service

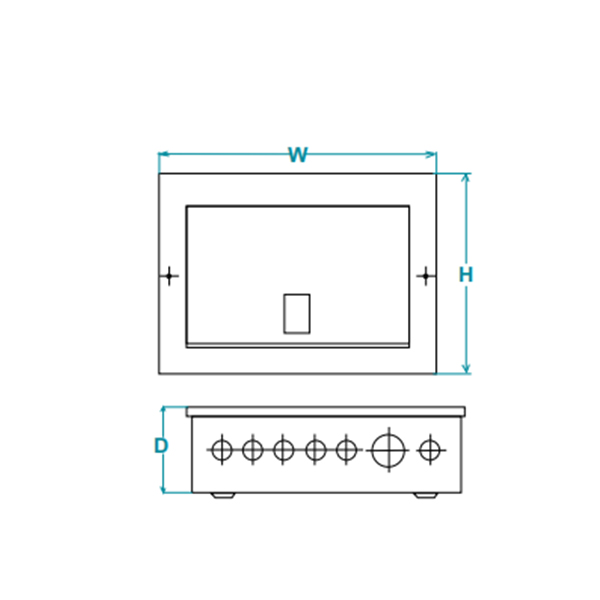

| Part No | Description | W(I) | W(RI) | H(mm) | D(mm) |
| WPSP/P-4Way/I | 4 Way with DP 100A Main Switch | 260 | / | 210 | 91 |
| WPSP/P-4Way/RI | 4 Way with DP 100A RCD + DP 100A Main Switch | / | 296 | 210 | 91 |
| WPSP/P-6Way/I | 6 Way with DP 100A Main Switch | 311 | / | 210 | 91 |
| WPSP/P-6Way/RI | 6 Way with DP 100A RCD + DP 100A Main Switch | / | 347 | 210 | 91 |
| WPSP/P-8Way/I | 8 Way with DP 100A Main Switch | 362 | / | 210 | 98 |
| WPSP/P-8Way/RI | 8 Way with DP 100A RCD + DP 100A Main Switch | / | 398 | 210 | 91 |
| WPSP/P-12Way/I | 12 Way with DP 100A Main Switch | 464 | / | 210 | 91 |
| WPSP/P-12Way/RI | 12 Way with DP 100A RCD + DP 100A Main Switch | / | 500 | 210 | 91 |
| WPSP/P-16Way/I | 16 Way with DP 100A Main Switch | 566 | / | 210 | 91 |
| WPSP/P-16Way/RI | 16 Way with DP 100A RCD + DP 100A Main Switch | / | 602 | 210 | 91 |
