Supplied with neutral cable, live busbar, neutral & earth terminal bars and cable gland
Fitted with DP 100A/125A main Switch.
Available in 4-way to 24-way models
Multiple cable entry knock-outs (25 & 32mm) on the top, bottom and sides
Max cable capactiy 35㎟
Suface Mounted
Protection degree IP40
Certificated with CE/UKCA by BSEN61439-3
OEM/ODM Service

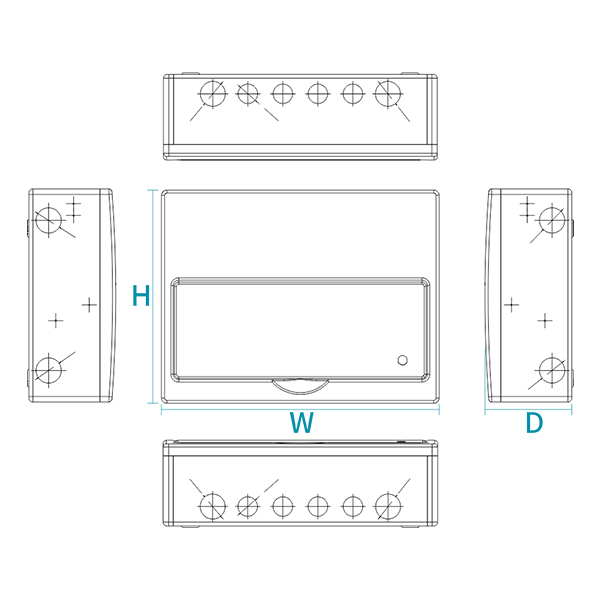

| Part No | Description | W(mm) | H(mm) | D(mm) |
| WSMC04/100 | 4 Way Metal Clad Consumer Unit c/w 100A Main Switch (2 usable ways) | 136 | 270 | 110 |
| WSMC06/100 | 6 Way Metal Clad Consumer Unit c/w 100A Main Switch (4 usable ways) | 172 | 270 | 110 |
| WSMC08/100 | 8 Way Metal Clad Consumer Unit c/w 100A Main Switch (6 usable ways) | 208 | 270 | 110 |
| WSMC10/100 | 10 Way Metal Clad Consumer Unit c/w 100A Main Switch (8 usable ways) | 244 | 270 | 110 |
| WSMC12/100 | 12 Way Metal Clad Consumer Unit c/w 100A Main Switch (10 usable ways) | 280 | 270 | 110 |
| WSMC14/100 | 14 Way Metal Clad Consumer Unit c/w 100A Main Switch (12 usable ways) | 316 | 270 | 110 |
| WSMC16/100 | 16 Way Metal Clad Consumer Unit c/w 100A Main Switch (14 usable ways) | 352 | 270 | 110 |
| WSMC18/100 | 18 Way Metal Clad Consumer Unit c/w 100A Main Switch (16 usable ways) | 388 | 270 | 110 |
| WSMC22/100 | 22 Way Metal Clad Consumer Unit c/w 100A Main Switch (20 usable ways) | 460 | 270 | 110 |
